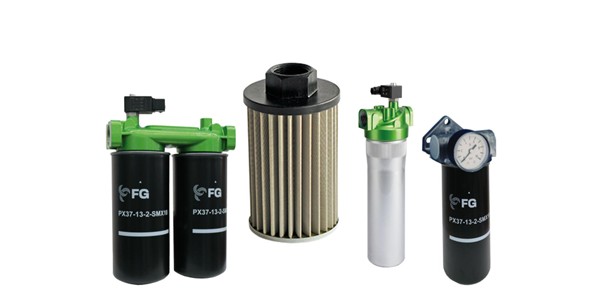

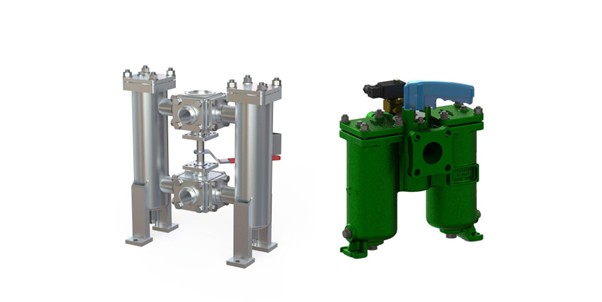

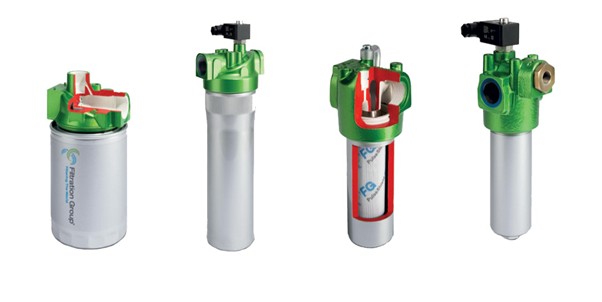

Filtration Group Industrial filters enhance the durability and efficiency of hydraulic systems by ensuring optimal cleanliness of fluids. These filters utilize cutting-edge materials and technologies like e-protect and PulseShieldTM to provide permanent protection against contamination and premature wear of machinery and equipment. With their robust construction and superior filter media, FGI hydraulic filters withstand high pressure and necessitate minimal maintenance. Moreover, Filtration Group Industrial offers a wide range of original filter systems, as well as high-quality filter elements called EcoParts, compatible with filter systems manufactured by other companies.

Filtration Group Industrial filters enhance the durability and efficiency of hydraulic systems by ensuring optimal cleanliness of fluids. These filters utilize cutting-edge materials and technologies like e-protect and PulseShieldTM to provide permanent protection against contamination and premature wear of machinery and equipment. With their robust construction and superior filter media, FGI hydraulic filters withstand high pressure and necessitate minimal maintenance. Moreover, Filtration Group Industrial offers a wide range of original filter systems, as well as high-quality filter elements called EcoParts, compatible with filter systems manufactured by other companies.

In stock Out of stock (call us for delivery time)
  1. 852 507 MIC   3-ER GEBINDE Height: 51.2mm Outer Diameter: 56.5 Inne 852 507 MIC   3-ER GEBINDE Height: 51.2mm Outer Diameter: 56.5 Inner Diameter: 25mm End Cap Material: Fleece end cap Filter Rating: 10,00 µm Filter material: Cellulose More... Less...
  2. 852 519 MIC   3-ER GEBINDE Height: 60mm Outer Diameter: 84.5mm Inne 852 519 MIC   3-ER GEBINDE Height: 60mm Outer Diameter: 84.5mm Inner Diameter: 54mm End Cap Material: Fleece End Cap Differential Pressure: 1 bar Filter Rating: 10,00 µm Filter Material: Cellulose More... Less...
  3. 852 519 SM-L / BOX OF 3 PCS Height: 60mm Outer Diameter: 84mm Inner 852 519 SM-L / BOX OF 3 PCS Height: 60mm Outer Diameter: 84mm Inner Diameter: 54mm End Cap Material: Fleece end cap Filter Rating: 3,00 µm Filter material: SML   More... Less...
  4. The EcoParts program includes cost-effective alternatives to the PS el The EcoParts program includes cost-effective alternatives to the PS elements. With EcoParts, we offer all hydraulic elements and spin-on cartridges from leading manufacturers, which enable cross-references due to their compatibility. Well-defined filter performance, purity class and durability High functionality and safety Certified quality, verified according to DIN and ISO standards with all common industry permits Height: 219mm Outer Diameter: 151mm Inner Diameter: 24mm Mounting Diameter: 20.5mm End Cap Material: Plastic end cap Differential Pressure: 10 bar Filter Rating: 3,00 µm Filter Material: Glass fibre (WS) Sealing Material: NBR More... Less...
  5. The EcoParts program includes cost-effective alternatives to the PS el The EcoParts program includes cost-effective alternatives to the PS elements. With EcoParts, we offer all hydraulic elements and spin-on cartridges from leading manufacturers, which enable cross-references due to their compatibility. Well-defined filter performance, purity class and durability High functionality and safety Certified quality, verified according to DIN and ISO standards with all common industry permits Height: 115.5mm Outer Diameter: 56mm Inner Diameter: 25.8mm Mounting Diameter: 22.8mm End Cap Material: Sheet Metal End Cap Differential Pressure: 30 bar Filter Rating: 6,00 µm Filter Material: Fibre Glass Sealing Material: NBR More... Less...
  6. The EcoParts program includes cost-effective alternatives to the PS el The EcoParts program includes cost-effective alternatives to the PS elements. With EcoParts, we offer all hydraulic elements and spin-on cartridges from leading manufacturers, which enable cross references due to their compatibility. Well-defined filter performance, purity class and durability High functionality and safety Certified quality, verified according to DIN and ISO standards with all common industry permits Height: 82.7mm Outer Diameter: 45mm Inner Diameter: 22.1mm Mounting Diameter: 22.1mm Differential Pressure: 210 bar Filter Rating: 10,00 µm Filter Material: Fibre Glass Sealing Material: FKM (FPM) More... Less...
  7. The EcoParts program includes cost-effective alternatives to the PS el The EcoParts program includes cost-effective alternatives to the PS elements. With EcoParts, we offer all hydraulic elements and spin-on cartridges from leading manufacturers, which enable cross references due to their compatibility. Well-defined filter performance, purity class and durability High functionality and safety Certified quality, verified according to DIN and ISO standards with all common industry permits Height: 206.3mm Outer Diameter: 56mm Inner Diameter: 25.8mm Mounting Diameter: 22.8mm Differential Pressure: 20 bar Filter Rating: 6,00 µm Filter Material: Fibre Glass Sealing Material: NBR More... Less...
  8. The EcoParts program includes cost-effective alternatives to the PS el The EcoParts program includes cost-effective alternatives to the PS elements. With EcoParts, we offer all hydraulic elements and spin-on cartridges from leading manufacturers, which enable cross-references due to their compatibility. Well-defined filter performance, purity class and durability High functionality and safety Certified quality, verified according to DIN and ISO standards with all common industry permits Height: 331mm Outer Diameter: 173mm Inner Diameter: 75.5mm Mounting Diameter: 71mm End Cap Material: Plastic End Cap Differential Pressure: 20 bar Filter Rating: 2,00 µm Filter Material: Fibre Glass Sealing Material: FKM (FPM) More... Less...
  9. The EcoParts program includes cost-effective alternatives to the PS el The EcoParts program includes cost-effective alternatives to the PS elements. With EcoParts, we offer all hydraulic elements and spin-on cartridges from leading manufacturers, which enable cross references due to their compatibility. Well-defined filter performance, purity class and durability High functionality and safety Certified quality, verified according to DIN and ISO standards with all common industry permits Height: 399mm Outer Diameter: 160mm Inner Diameter: 90.5mm Mounting Diameter: 90.5mm End Cap Material: Sheet Metal End Cap Differential Pressure: 10,00 bar Filter Rating: 10,00 µm Filter Material: Glass fibre Sealing Material: NBR Nominal Size: 1.000 l/min More... Less...
  10. Depth filter made of a cellulose or polyester glass fibre layer with h Depth filter made of a cellulose or polyester glass fibre layer with high dirt holding capacity and low flow resistance. Nominal size 50 to 450 High differential pressure stability and dirt-holding capacity Inexpensive disposable filter elements Design for our filter housings, as alternative elements in the dimensions of other manufacturers and in customer-specific design Height: 255.5mm Outer Diameter: 83.2mm Inner Diameter: 47.5mm Mounting Diameter: 47.5mm End Cap Material: Sheet Metal End Cap Differential Pressure: 60bar Filter Rating: 25 µm Filter Material: KS MIC Nominal Size: 300 l/min More... Less...
  11. Depth filter made of a cellulose or polyester glass fibre layer with h Depth filter made of a cellulose or polyester glass fibre layer with high dirt holding capacity and low flow resistance. High differential pressure stability and dirt-holding capacity Inexpensive disposable filter elements Design for our filter housings, as alternative elements in the dimensions of other manufacturers and in customer-specific design Height: 93mm Outer Diameter: 47mm Inner Diameter: 47.5mm Mounting Diameter: 47.5mm End Cap Material: Plastic End Cap Differential Pressure: 20 bar Filter Rating: 10,00 µm Filter Material: Cellulose Nominal Size: 150 l/min More... Less...
  12. Depth filter made of several precisely matched glass fibre layers (pro Depth filter made of several precisely matched glass fibre layers (progressive structure) for the filtration of hydraulic and lubricating fluids, fuels, and flame-retardant and synthetic fluids. Nominal size 50 to 450 Guaranteed separation rates according to multipass test according to ISO 16889. Designed for our filter housings, as alternative elements in the dimensions of other manufacturers and in customer-specific design Universally applicable for hydraulic and lubricating fluids, fuels, aqueous media and synthetic fluids Height: 93mm Outer Diameter: 25.50mm Mounting Diameter: 25.50mm End Cap Material: Sheet Metal End Cap Differential Pressure: 20bar Filter Rating: 10,00 µm Filter Material: Fibre Glass Nominal Size: 50 l/min More... Less...
  13. Surface filters made of stainless steel wire mesh in weave types braid Surface filters made of stainless steel wire mesh in weave types braid, twill weave and linen weave with very low flow resistance. Nominal size 50 to 450 Recleanable surface filter elements made out of wire mesh Design for our filter housings, as alternative elements in the dimensions of other manufacturers and in customer-specific design Low flow resistance Height: 255.5mm Outer Diameter: 84mm Inner Diameter: 47.5mm Mounting Diameter: 47.5mm End Cap Material: Plastic End Cap Differential Pressure: 20bar Filter Rating: 40,00 µm Filter material: Wire mesh Nominal size: 300 l/min More... Less...
  14. Surface filters made of stainless steel wire mesh in weave types braid Surface filters made of stainless steel wire mesh in weave types braid, twill weave and linen weave with very low flow resistance. Nominal size 50 to 450 Recleanable surface filter elements made out of wire mesh Design for our filter housings, as alternative elements in the dimensions of other manufacturers and in customer-specific design Low flow resistance Height: 93mm Outer Diameter: 47mm Inner Diameter: 20.5mm Mounting Diameter: 20.5mm End Cap Material: Sheet Metal End Cap Differential Pressure: 20 Bar Filter Rating: 60,00 µm Filter material: Wire mesh Nominal size: 50 l/min More... Less...
  15. Surface filters made of stainless steel wire mesh in weave types braid Surface filters made of stainless steel wire mesh in weave types braid, twill weave and linen weave with very low flow resistance. Nominal size 50 to 450 Recleanable surface filterelements made out of wire mesh Design for our filter housings, as alternative elements in the dimensions of other manufacturers and in customer-specific design Low flow resistance Height: 171mm Outer Diameter: 47mm Inner Diameter: 25.5mm Mounting Diameter: 25.5 End Cap Material: Sheet Metal End Cap Differential Pressure: 20bar Filter Rating: 60,00 µm Filter material: Wire mesh Nominal size:80 l/min More... Less...
  16. The EcoParts program includes cost-effective alternatives to the PS el The EcoParts program includes cost-effective alternatives to the PS elements. With EcoParts, we offer all hydraulic elements and spin-on cartridges from leading manufacturers, which enable cross-references due to their compatibility. Well-defined filter performance, purity class and durability High functionality and safety Certified quality, verified according to DIN and ISO standards with all common industry permits Height: 372mm Outer Diameter: 84mm Inner Diameter: 47.5mm Mounting Diameter: 47.5mm End Cap Material: Plastic End Cap Differential Pressure: 20bar Filter Rating: 60,00 µm Filter material: Wire mesh Nominal size: 450 l/min More... Less...
