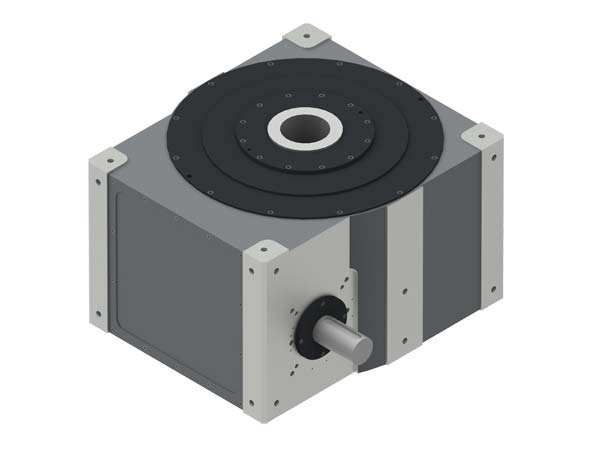

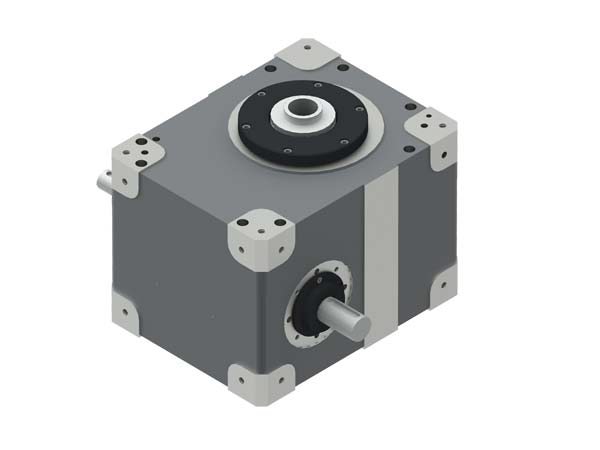

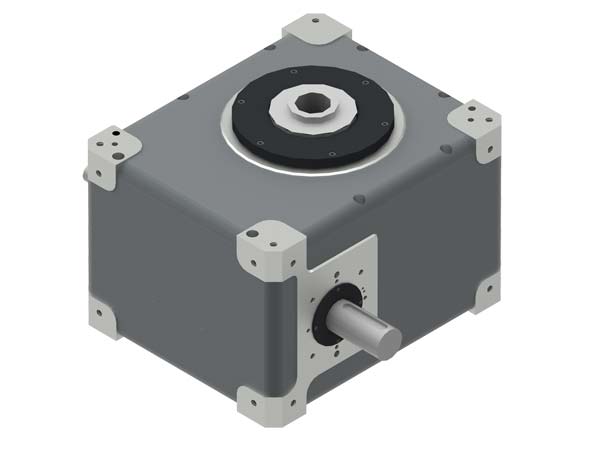

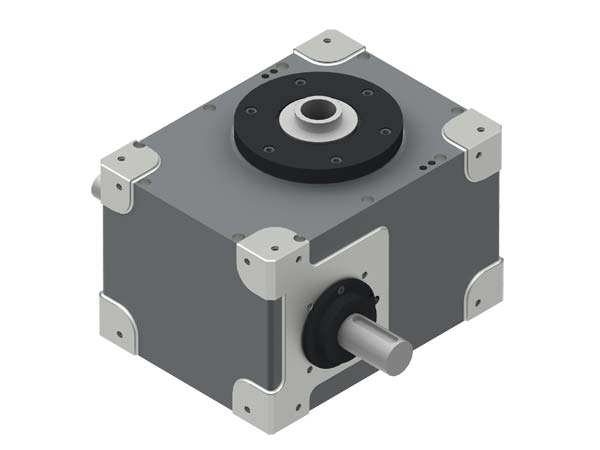

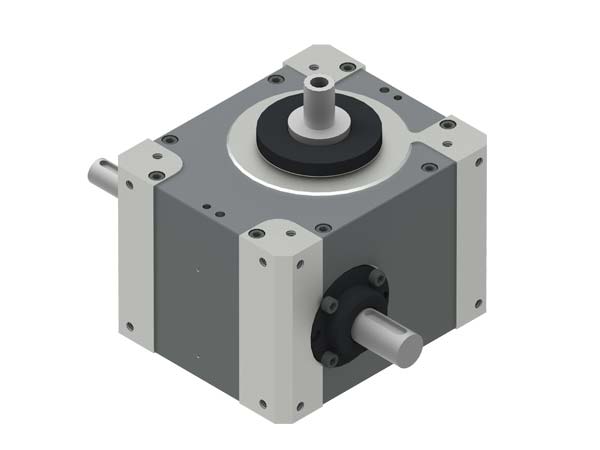

Orthogonal Axis Intermittent-Oscillating Drivers IT/OT

The intermittent drive works on the same principle as the rotary index table. The difference is that both the oscillator and Intermittent Drives have an output shaft rather than an indexing table top or disc. The compact and minimalistic shape makes the units easily applicable when placed in different orientations within the final machine requirements. The Oscillator is dimensionally the same as the Intermittent Drive, but it is equipped with a different drive cam that transforms a constant input speed into an oscillating output with acceleration and deceleration inherent to the mechanism. Specific dwells or pauses can be achieved by simply designing the internal cam and the incorporation of cam follower bearings to ride in the rib of the cam. With minimal mass and inertia rapid movement of the machine is achievable.
