Curved Guides

Our curved guides are designed to move loads along curved paths. These systems use ball bearings and hardened raceways, ensuring long life, wear resistance and reduced maintenance requirements. Available in constant or variable radius configurations, The curved guides are suitable for a wide range of industrial applications where reliable load handling is essential.

Types of Curved Guides: Advantages and Applications.

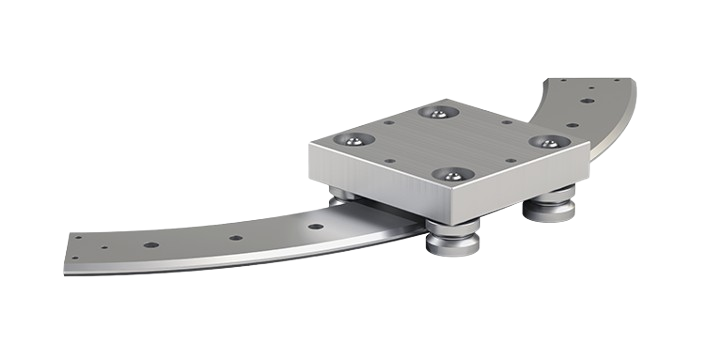

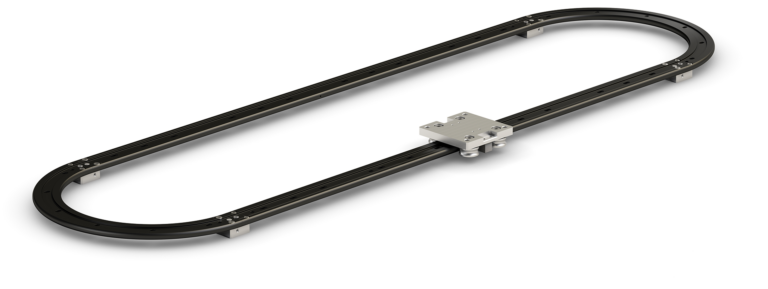

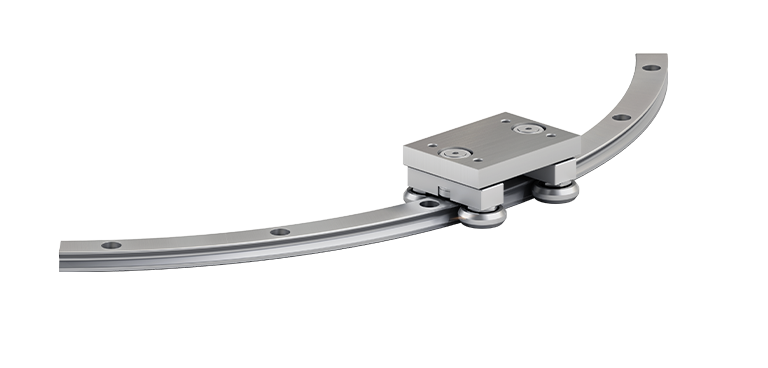

The curvilinear slides fall into several categories, each with specific advantages. Multi-motion line slides can be used as a complete circuit or in sectors, ideal for the creation of complex circuits. The CLT modular guides allow the construction of oval or rectangular circuits, adaptable in contexts where paths need to be remodelled. Curvilinear rails are also available in stainless steel.

What Advantages do Curved Guides Offer Over Linear Ones?

Unlike linear guides, which allow for straight movements, curved guides are ideal for applications where a curved path is required while maintaining precision and stability. These characteristics make them perfect for industries such as automation and material handling, where complex paths must be accommodated without sacrificing motion quality.

Available Models: Multi-Motion Line, CLT, Curviline
