Compact Rail Plus

Compact Rail Plus

Very high load capacity roller guide. The most tolerant self-aligning system on the market.

Available Sizes: 18, 28, 43.

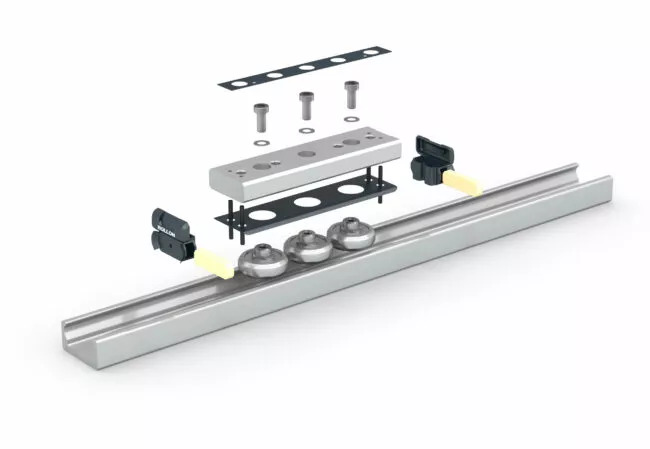

• Slider equipped with new double-row ball bearing rollers. Increase in load capacity up to +65% in radial and +120% in axial direction, compared to
• Compact Rail with identical dimensions.
• Excellent reliability in polluted environments thanks to the generous dimensions of the rollers, the new protective side seals and self-aligning scrapers for optimal cleaning of the raceways.
• Integrated lubrication system with progressive release felt

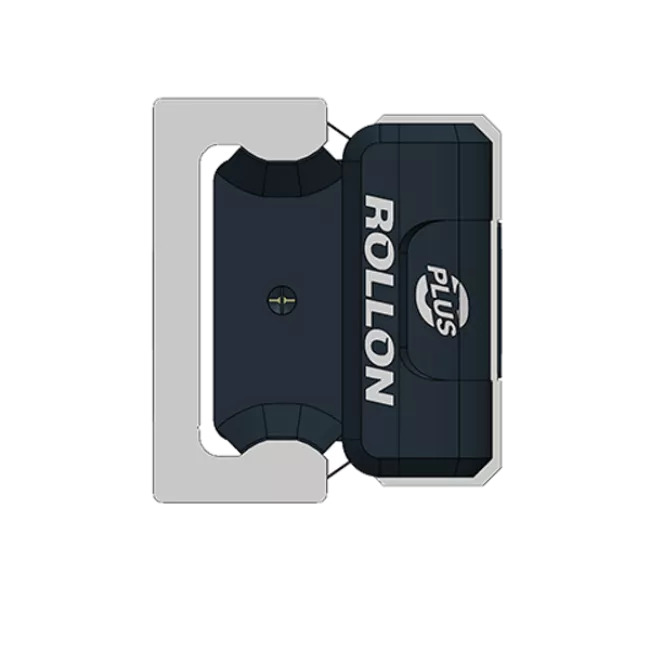

• Single rail, “TG” type, which can accommodate 4 different versions of sliders. C” profile rail, with convex raceways for greater rigidity.
• Roller guide designed to be mounted on unmachined surfaces. Drastic reduction in cost and time required to mount the system
• CF53 (or C43F) high performance steel rail with induction hardened and ground raceways
• Maximum reliability in industrial automation applications with demanding cyclical conditions
• Linear accuracy of less than 0.1 mm for a rail length of 1000 mm
• Operating temperature range between -20°C and +120°C, short peaks at +150°C accepted
• Adjustable slider preload. Easily joined rails for unlimited travel
• Suitable for use in polluted, humid, low and high temperature environments

4 Slider Versions:

• “RV” slider (play-free master skate, two-point contact rollers)
• Floating “RP” slider (rollers with one point of contact and two shoulders)
• Extra-floating “RU” slider (rollers with flat outer ring)
• Rotary “RA” slider

Compensation of misalignments, up to 3.5 mm, with the combinations “RV+RP” or “RV+RU“.

Compensation of angular errors up to ±1.3° with the combinations “RA+RP” or “RA+RU”.
