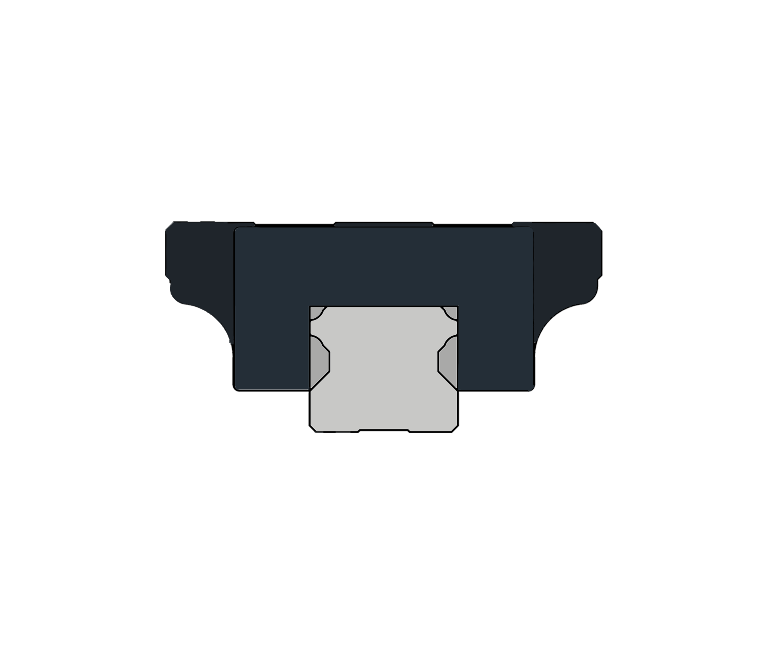

Miniature Mono Rail

'Re-Circulating Ball Bearings Miniature Linear Guide With High Load Capacity and Rigidity.'

Features:

• Miniature Mono Rail is a high-precision, recirculating balls miniature rail made from stainless steel.
• The rails are available in two versions (wide or standard body), and they come in 4 different sizes.
• They are offered in 3 precision classes (N, H, P) and are made from stainless steel, ensuring durability and resistance to corrosion.
• Sizes available from 7 mm up to 15 mm.
• LM guide with very high load capacity, precision and stiffness
• Exploiting its technical potential requires rigid, precise mounting surfaces and the use of 12-9 quality fixing screws
• Linear accuracy of less than 0.02 mm for a rail length of 500 m
• The main dimensions of the Mono Rail correspond to the market standard. Interchangeability with other manufacturers possible
• Operating temperature range between -20°C and +80°C
• Rail junction possible (machining of the rail ends). Several preload classes available for the slider

Available Sizes:

Standard: 7, 9, 12, 15

Wide: 9, 12, 15
