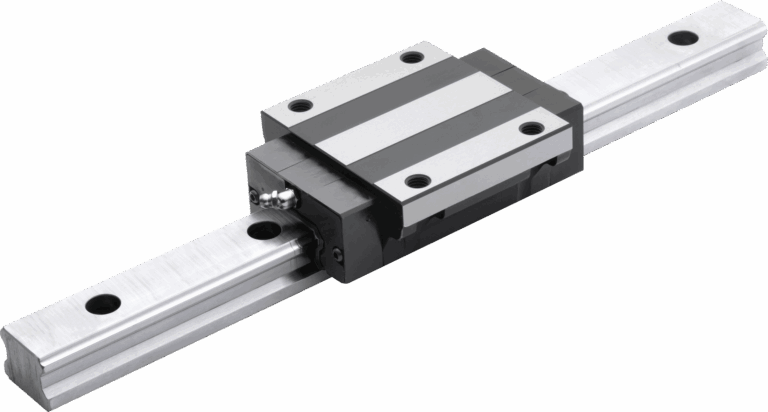

Mono Rail

'Re-Circulating Ball Bearings Linear Guide With High Load Capacity and Rigidity'

Features:

• The Mono Rail system provides excellent positioning accuracy and stiffness, ideal for applications requiring highest degree of precision.
• High load capacity to offer great resistance to heavy loads and moments in all directions.
• Smooth operation: equipped with 4 rows of recirculating balls, it ensures smooth and frictionless linear motion, enhancing performance and reducing wear.
• LM guide with very high load capacity, accuracy and rigidity
• The exploitation of its technical potential requires rigid, precise mounting surfaces and the use of 12-9 quality fixing screws.
• Linear accuracy of less than 0.025 mm for a rail length of 1000 m
• The main dimensions of the Mono Rail correspond to the market standard.
• Interchangeability with other manufacturers possible
• Joint Processed rail possible (machining of the ends). Several preload classes possible for the LM slider

Available Sizes: 15, 20, 25, 30, 35, 45
