RfN 7005

LOADING IMAGES

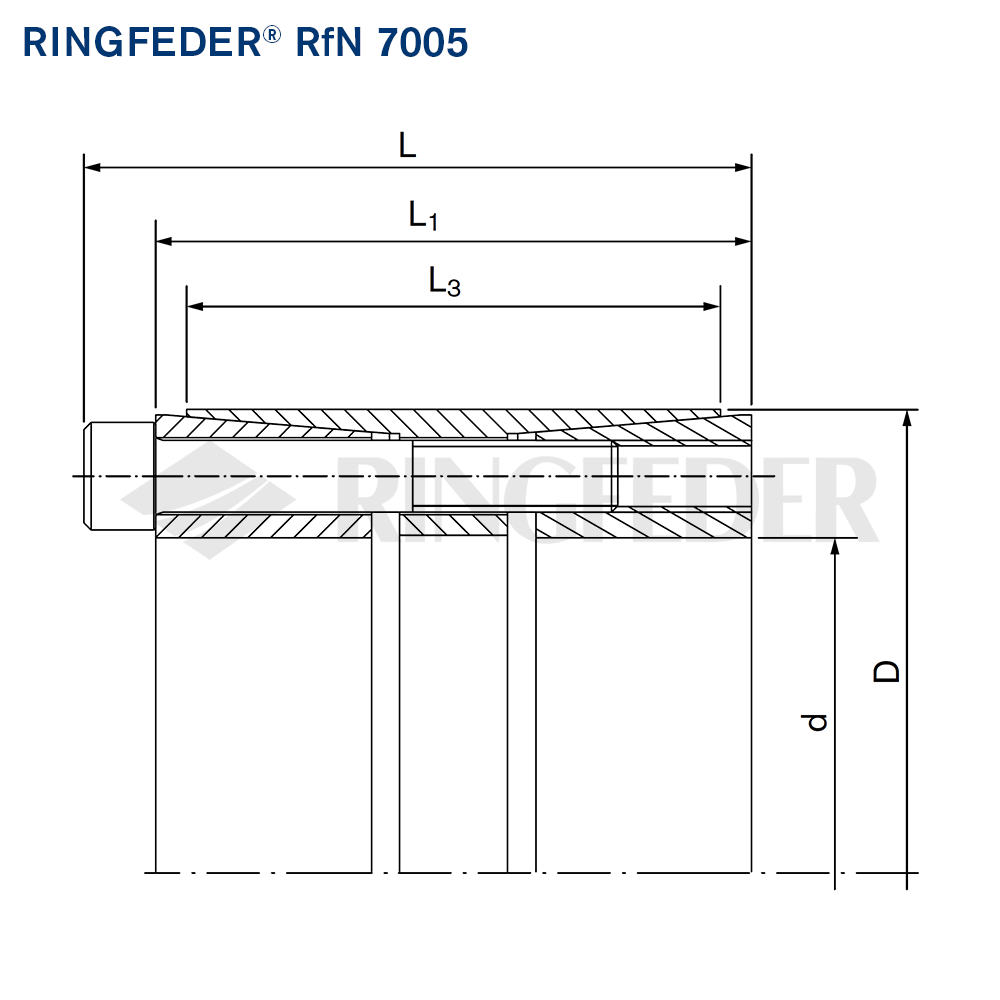

Three piece, self-centering, slitted locking assemblies for highest torques. During assembly a minor axial displacement of the hub occurs. The front and rear thrust rings are separately released through release threads.

ℹ This series is also available in true imperial sizes.

Self-Centering
Inner Diameter d: 25-600 mm
Outer Diameter D: 55-695 mm
Overall Length L: 46-224 mm
Torque T: 649-1,8 Mio. Nm

Installation & Operations Manual

RfN 7005 Technical Paper

Ringfeder Product Catalogue

In stock Out of stock (call us for delivery time)

RINGFEDER® RfN 7005 25 x 50

£29.03

×
RINGFEDER® RfN 7005 25x55

£29.03

×
RINGFEDER® RfN 7005 28x55

£29.03

×
RINGFEDER® RfN 7005 30x55

£29.49

×
RINGFEDER® RfN 7005 35x60

£33.39

×
RINGFEDER® RfN 7005 38x65

£43.49

×
RINGFEDER® RfN 7005 40x65

£43.49

×
RINGFEDER® RfN 7005 42x75

£47.45

×
RINGFEDER® RfN 7005 45x75

£47.91

×
RINGFEDER® RfN 7005 48x80

£52.33

×
RINGFEDER® RfN 7005 50x80

£53.70

×
RINGFEDER® RfN 7005 55x85

£56.63

×
RINGFEDER® RfN 7005 60x90

£61.39

×
RINGFEDER® RfN 7005 65x95

£67.70

×
RINGFEDER® RfN 7005 70x110

£85.61

×
RINGFEDER® RfN 7005 75x115

£89.34

×
RINGFEDER® RfN 7005 80x120

£93.64

×
RINGFEDER® RfN 7005 85x125

£99.95

×
RINGFEDER® RfN 7005 90x130

£102.88

×
RINGFEDER® RfN 7005 95x135

£116.82

×
