RfN 7006

LOADING IMAGES

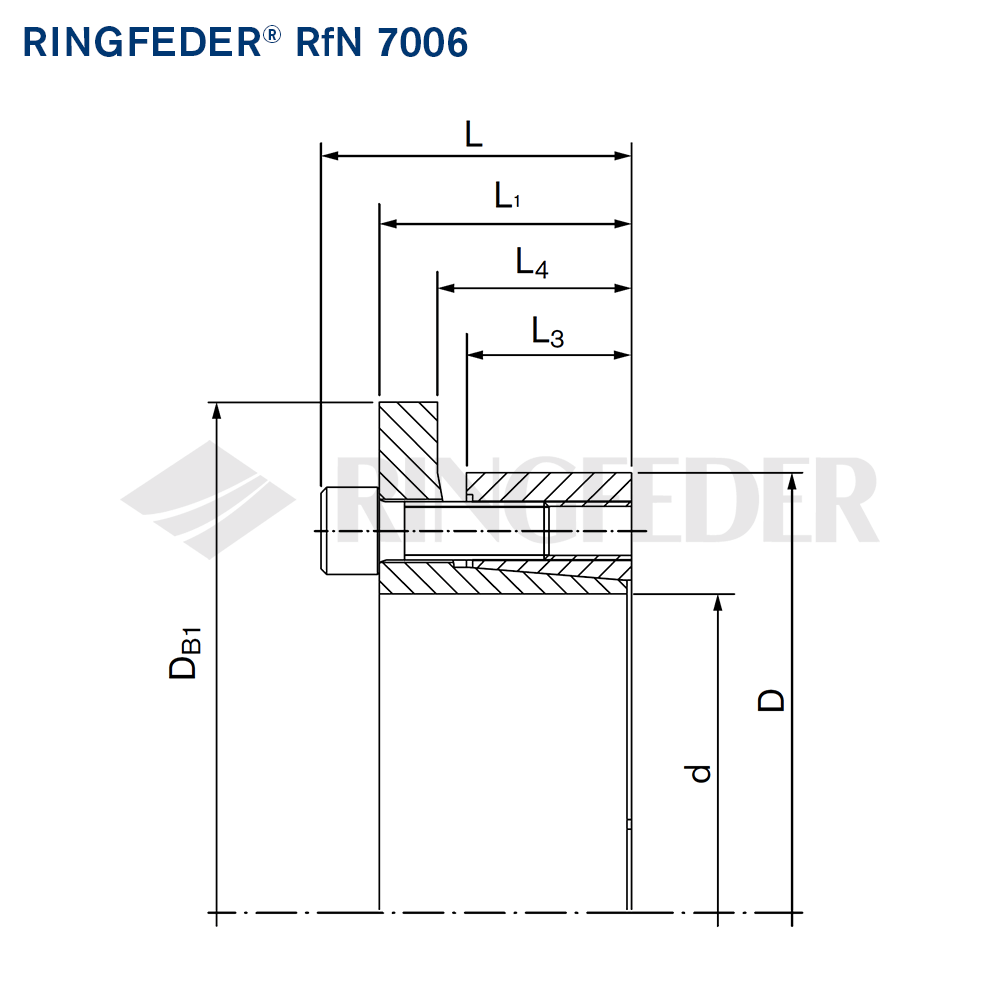

Two piece design with single taper has flange to position the component on the shaft to maintain axial position during mounting.

ℹ This series is also available in true imperial sizes.

Has all positive features of series 7003. However, through the bigger flange diameter an axial displacement of the hub during mounting is averted. Is also applied with belt pulleys.

Self-Centering
Without Axial Displacement
Inner Diameter d: 19-400 mm
Outer Diameter D: 47-495 mm
Overall Length L: 34-138 mm
Torque T: 270-375,945 Nm

Installation & Operations Manual

RfN 7006 Technical Paper

Ringfeder Product Catalogue

In stock Out of stock (call us for delivery time)

RINGFEDER® RfN 7006 19x47

£12.22

×
RINGFEDER® RfN 7006 20x47

£12.22

×
RINGFEDER® RfN 7006 22x47

£12.22

×
RINGFEDER® RfN 7006 24x50

£12.74

×
RINGFEDER® RfN 7006 25x50

£12.74

×
RINGFEDER® RfN 7006 28x55

£13.37

×
RINGFEDER® RfN 7006 30x55

£13.37

×
RINGFEDER® RfN 7006 32x60

£15.61

×
RINGFEDER® RfN 7006 35x60

£15.61

×
RINGFEDER® RfN 7006 38x65

£16.70

×
RINGFEDER® RfN 7006 40x65

£16.70

×
RINGFEDER® RfN 7006 42x75

£18.93

×
RINGFEDER® RfN 7006 45x75

£18.93

×
RINGFEDER® RfN 7006 48x80

£20.02

×
RINGFEDER® RfN 7006 50x80

£20.02

×
RINGFEDER® RfN 7006 55x85

£22.09

×
RINGFEDER® RfN 7006 60x90

£24.44

×
RINGFEDER® RfN 7006 65x95

£27.83

×
RINGFEDER® RfN 7006 70x110

£35.29

×
RINGFEDER® RfN 7006 75x115

£40.68

×
