RfN 7007
LOADING IMAGES

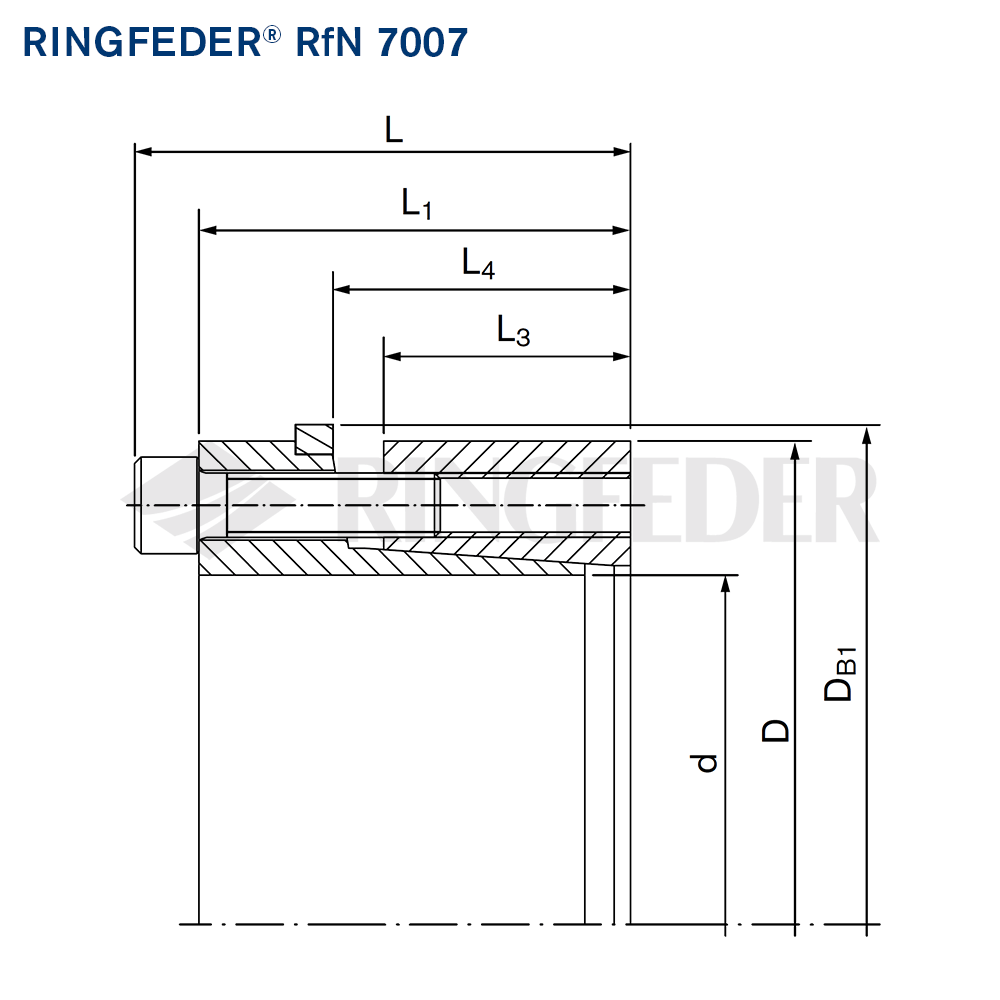

Two piece design similar to Locking Assembly RfN 7006, but extended with lower shaft and hub pressures.
ℹ This series is also available in true imperial sizes.
RfN 7007 is a modification of RfN 7004 with all its positive features, but here - same as RfN 7006 - the axial displacement during mounting is averted.
- Self-Centering
- Without Axial Displacement
- Inner Diameter d: 19-200 mm
- Outer Diameter D: 47-260 mm
- Overall Length L: 45-98 mm
- Torque T: 270-48,800 Nm
