RfN 7013
LOADING IMAGES

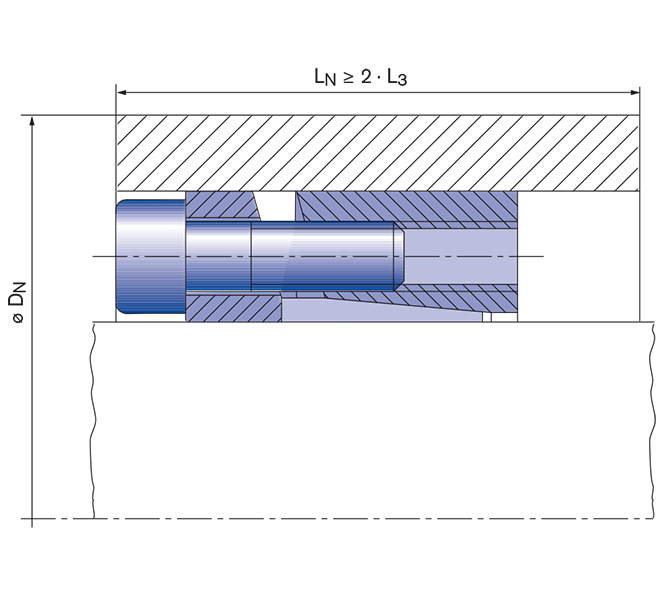

These Locking Assemblies are of single-taper design with a self-locking taper providing good self-centering action and concentricity, as well as increased torque capacity. A pre-centering hub section is not required. Integral push-off screws for disassembly are provided. This unit can be placed deep inside a bore due to it’s design. Available sizes: Metric series shafts from 20 mm to 150 mm dia. and Inch series for shafts from 1” to 4” diameter.
ℹ This series is also available in true imperial sizes.
- Self-Centering

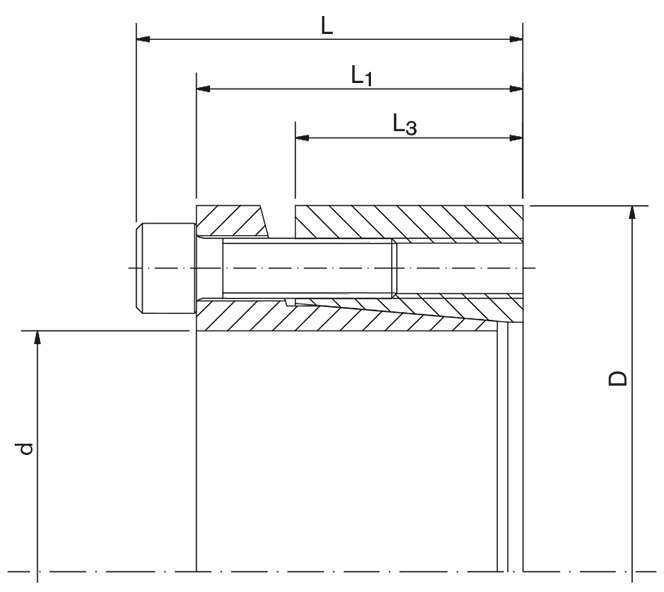

- Inner Diameter d: 19-150 mm
- Outer Diameter D: 47-200 mm
- Overall Length L: 37-77 mm
- Torque T: 285-28,500 Nm
