Self-centering, cost-efficient two piece locking assemblies for medium torques. During mounting, minor axial displacement of the hub occurs. Due to the small number of screws, cost savings during mounting are ensured. For disassembly only few release screws are required. Also availabe for very small shaft diameters.
- Self-Centering
- Low Surface Pressure

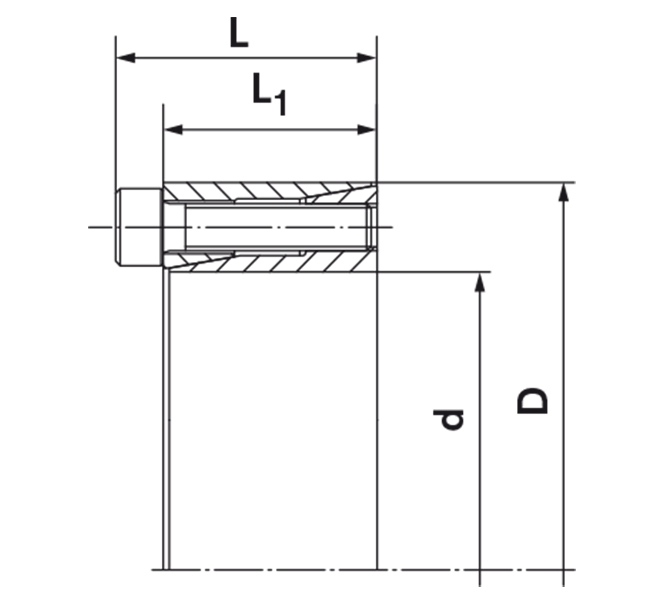

- Inner Diameter d: 6-50 mm
- Outer Diameter D: 16-80 mm
- Overall Length L: 13,5-44 mm
- Torque T: 6-1,900 Nm
In stock
Out of stock (call us for delivery time)
