RfN 7515
LOADING IMAGES
Especially for the bending moment transmission designed 3 part Locking Assembly with reduced stresses in the Locking Assembly itself. Available in sizes 60 to 640 mm.
ℹ This series is also available in true imperial sizes.

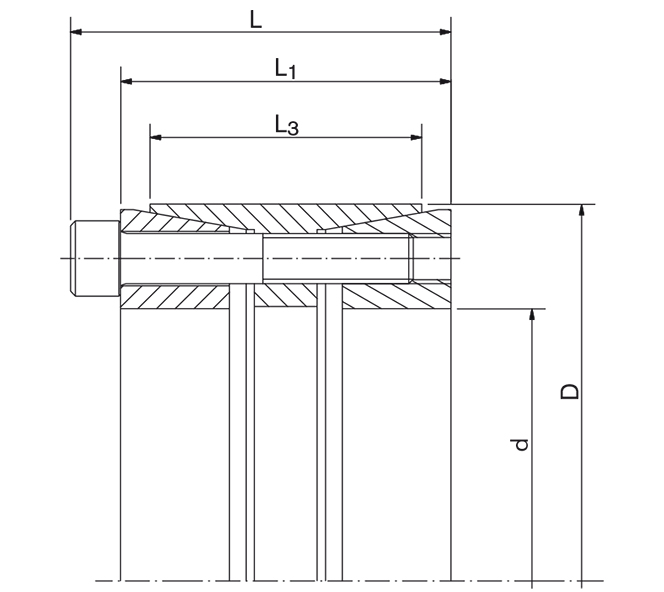

- Self-Centering
- Inner Diameter d: 60-640 mm
- Outer Diameter D: 95-735 mm
- Overall Length L: 58-177 mm
- Torque T: 4,299-1.3 Mio Nm
In stock
Out of stock (call us for delivery time)
