RfN 8006

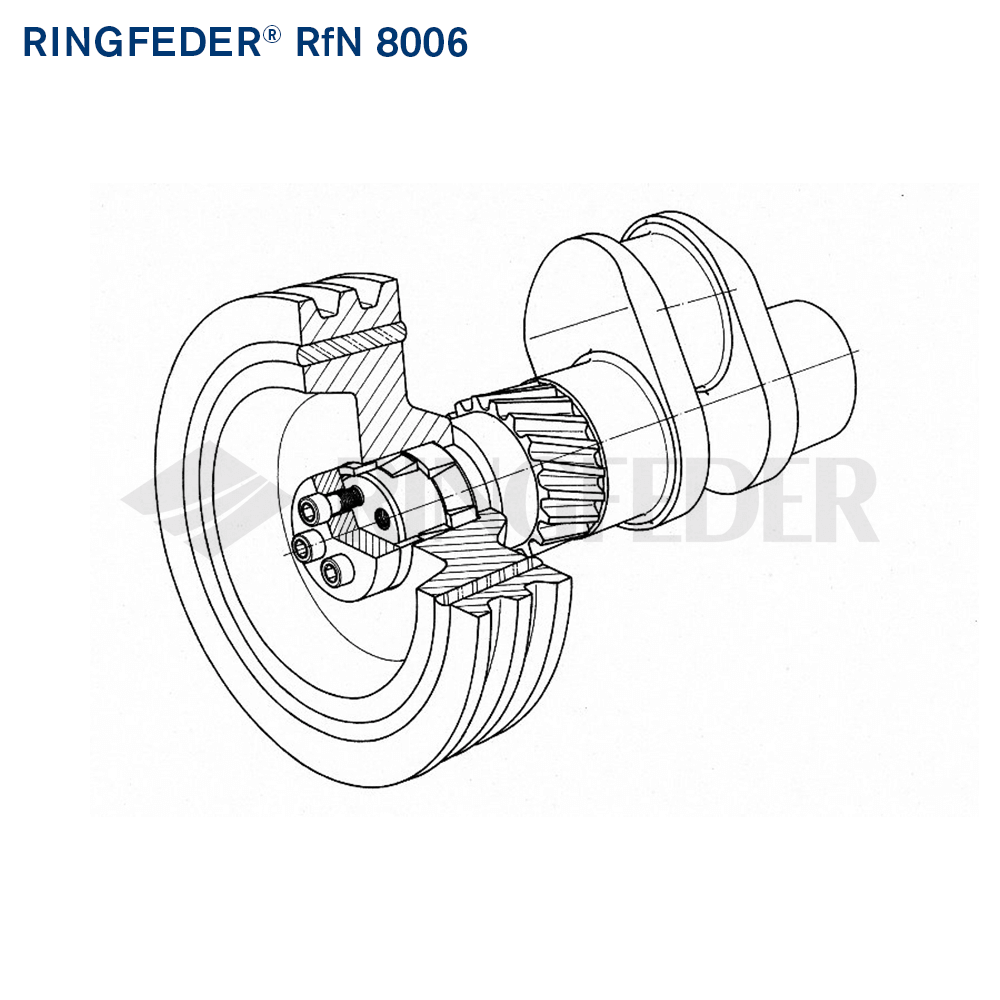

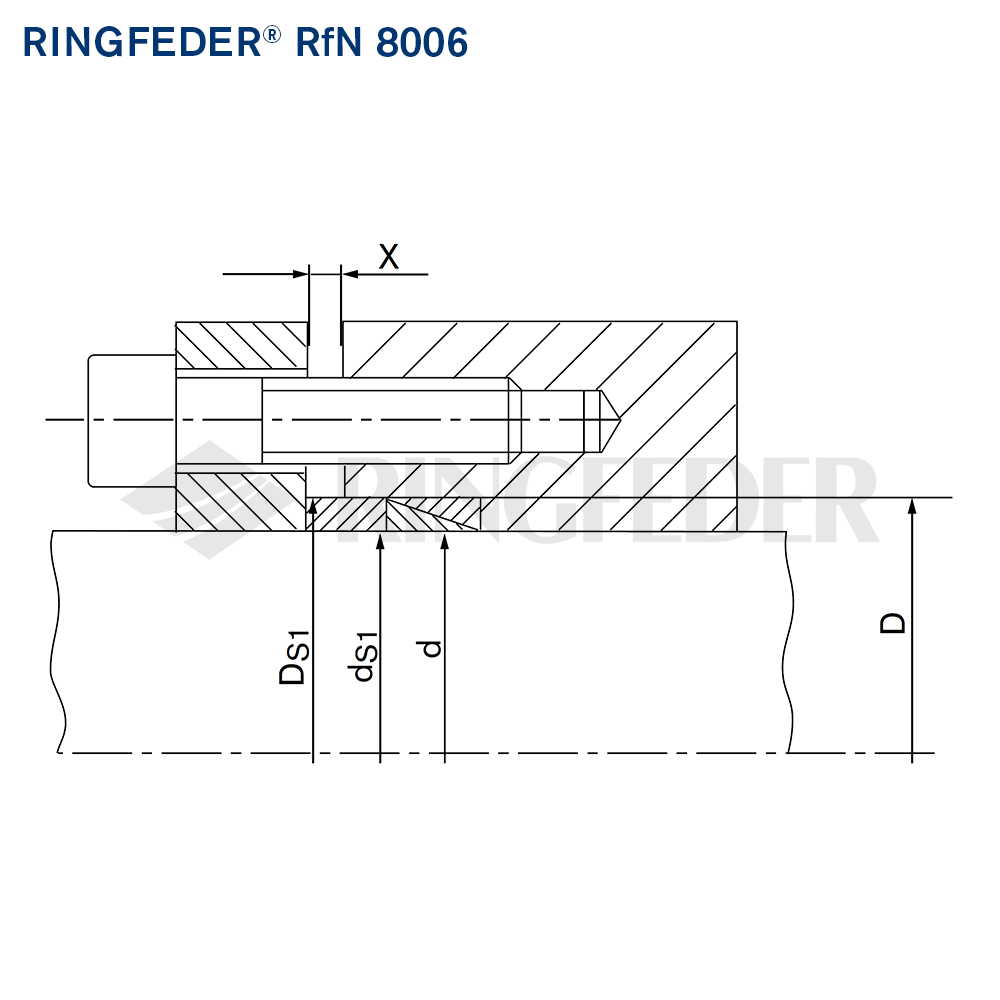

High-quality Locking Elements of the series RINGFEDER^® RfN 8006 are used for friction-locked shaft-hub connections. They are completely wear- and maintenance-free, extremely compact and flexible to deploy, easy to assemble and disassemble and guarantee users maximum reliability and precision. Our locking elements are available to users with an inner diameter from 6 to 1,000 millimetres as well as in slit and solid types. They are particularly suitable for the failsafe transmission of low to medium axial loads and torques.

• 97 Sizes
• Available in Solid and Slit Type

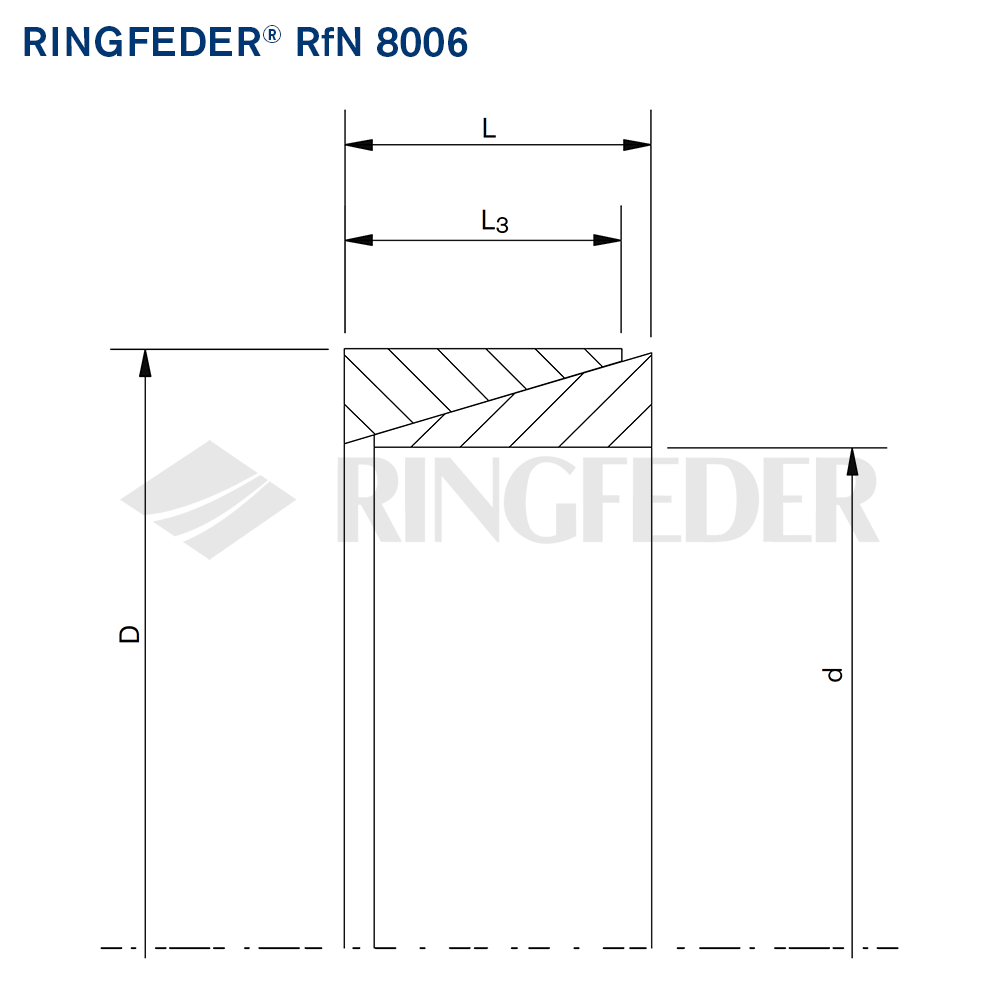

• Inner Diameter d: 6-1,000 mm
• Outer Diameter D: 9-1,050 mm
• Total Length L: 4.5-80 mm
• Torque T_max: 8-2 Mio. Nm
