RfN 7013.1 SST
LOADING IMAGES
These flange type units is made of stainless steel and fix the hub positively against their extended flange preventing axial movement during tightening. Applied wherever self-centering action and good concentricity of mounted components are essential and hubs with straight-thru bores are used. Available sizes: Metric series shafts from 20 mm to 150 mm dia. and Inch series for shafts from 1” to 4” diameter.
- Self-Centering
- Without Axial Displacement

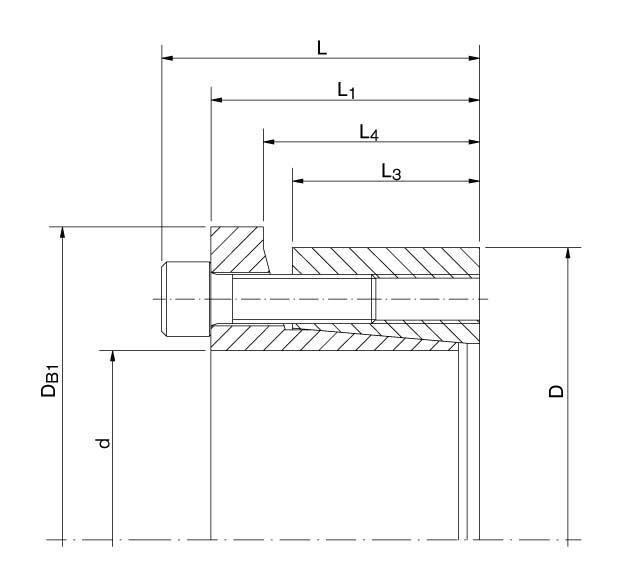

- Inner Diameter d: 19-150 mm
- Outer Diameter D: 47-200 mm
- Overall Length L: 37-77 mm
- Torque T: 199-19,950 Nm
In stock
Out of stock (call us for delivery time)
