RfN 7061 SST
LOADING IMAGES

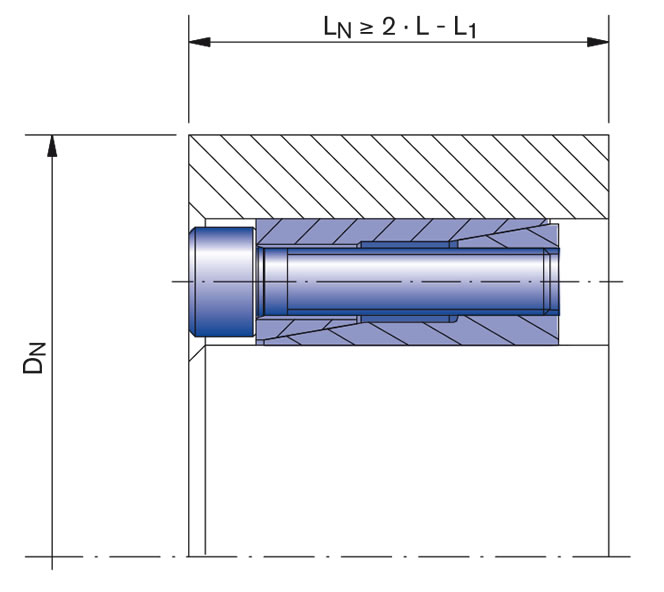

Self-centering 2-piece Locking Assemblies for medium torques. During mounting, minor axial displacement of the hub occurs in opposite direction of the screw head. Due to the small number of screws, cost savings during mounting are ensured. For disassembly only few release screws are required.
- Self-Centering
- Low Surface Pressure
- Inner Diameter d: 6-50 mm
- Outer Diameter D: 16-80 mm
- Overall Length L: 13.5-44 mm
- Torque T: 3-1,472 Nm
