RfN 7110 SST
LOADING IMAGES

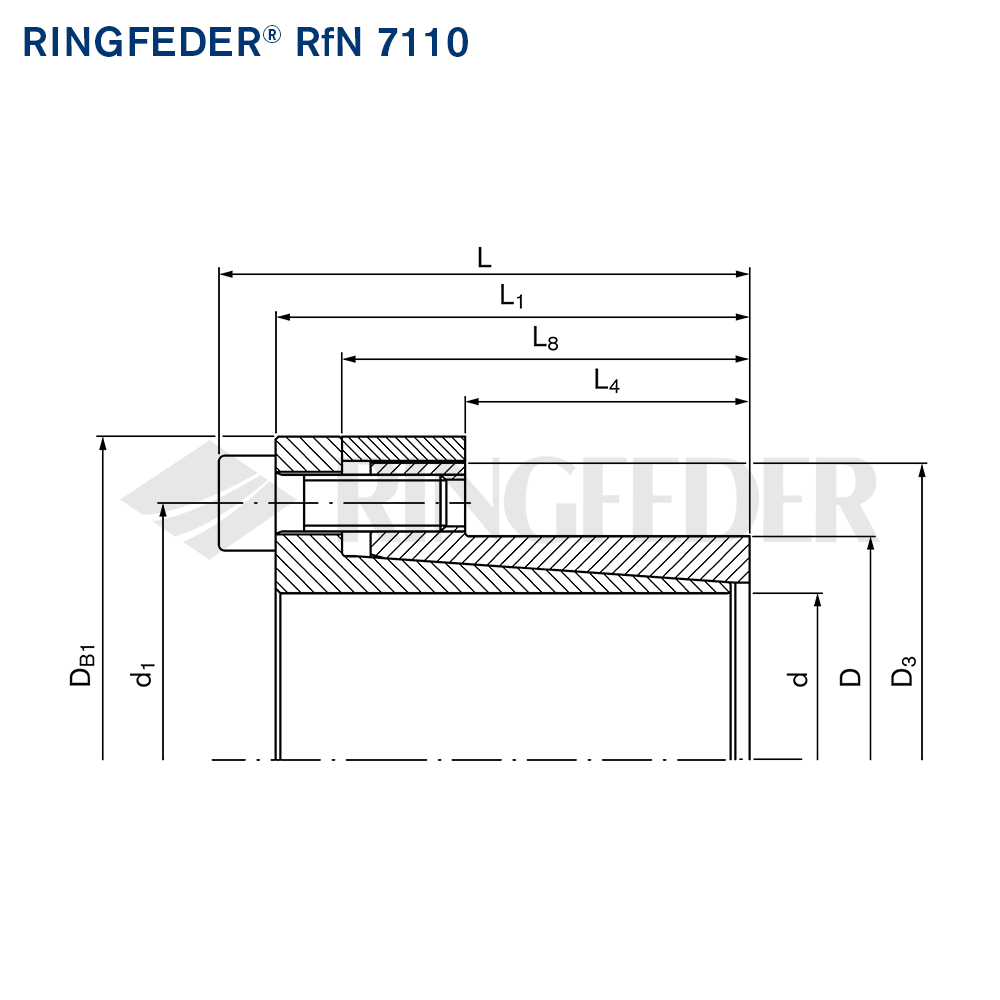

Specially small dimensioned self-centering Locking Assembly without axial displacement. As the locking srews are located out of the actual clamping area and the pressures are relatively low, the hub can be designed economically small.
We recommend the following mounting tolerances
Shaft: h8; Hub: H8
- Self-Centering
- Without Axial Displacement
- Low Surface Pressure
- Inner Diameter d: 8-50 mm
- Outer Diameter D: 16-65 mm
- Overall Length L: 28-82 mm
- Torque T: 16-1,883 Nm
