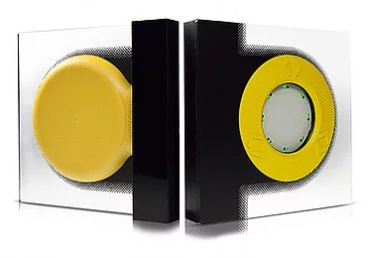

Capacitive SENSORswitches CHT6 Series

The SENSORswitch CHT6 is designed for adhesive mounting on single glass and switch by touch. The SENSORswitch CHT6 can be switched one sided through single glass. For installation / application it is not required to have a hole in the glass. The field of application extends over traffic engineering and building technology up to information services. The SENSORswitch is equipped with an optical feedback. Several million cycles and an extremely long life completes the SENSORswitch. For people with limited mobility, the SENSORswitch is available with braille or raised symbols at the outer ring.

Important Properties:

• Adhesive mounting
  No screws required
• Switching through single glass and direct touch
  No need to drill holes in the panes
• One-sided control
  Can be used on the outside only
• Feedback
  Visual feedback through 16 LEDs
• Shock-resistant
  The sensor cannot be destroyed by lighter flames or severe blows
• 100 % water & oil-proof - IP69K
  Sensor completely sealed in cast resin
• Durable service life
  More than 100 million operation cycles (transistor output)
• Accessibility
  Braille and raised chevrons on coloured cover ring, 25 cm² operating surface
• TSI-PRM certified (depends on model)
  By directive 1300/2014
