Series 10
LOADING IMAGES
This precision-built series features components like robust POM plastic and anodized aluminium, ensuring long-lasting performance. With its adjustable design and a variety of sizes, it offers flexibility and reliability for controlling fluid flow in machinery.
Especially suitable for: Vehicle & Appartus Manufacturing

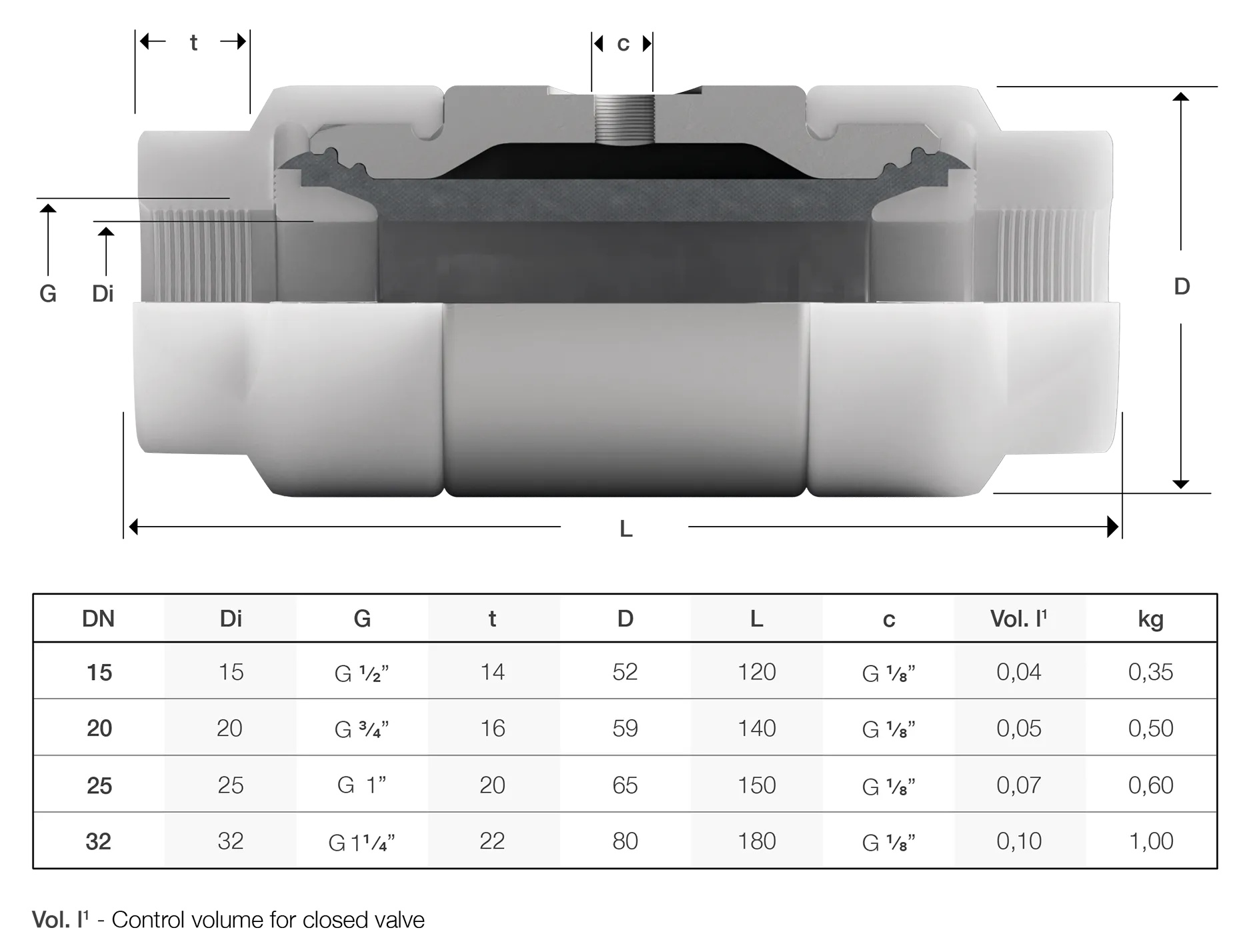

Nominal Widths: G ½”, ¾”, 1”, 1¼”
Threaded Cap: POM plastic (polyoxymethylene), natural white.
Clamping Cone: POM plastic (polyoxymethylene), natural white.
Sleeve: As selected...
Housing (not in contact with medium): Aluminium alloy 6026 /6082, colourless anodized.
Valve Settings:
DN: 015, 020, 025, 032.
Sleeve Quality: NR - 000 , NR-L - 010, NR-LH - 020, NBR-LH - 120, EPDM-L - 212, FPM - 303, CR - 400, CSM - 500.
Version Standard: 000, 100
*100 Silicone-Free assembled*
