Series 20
LOADING IMAGES

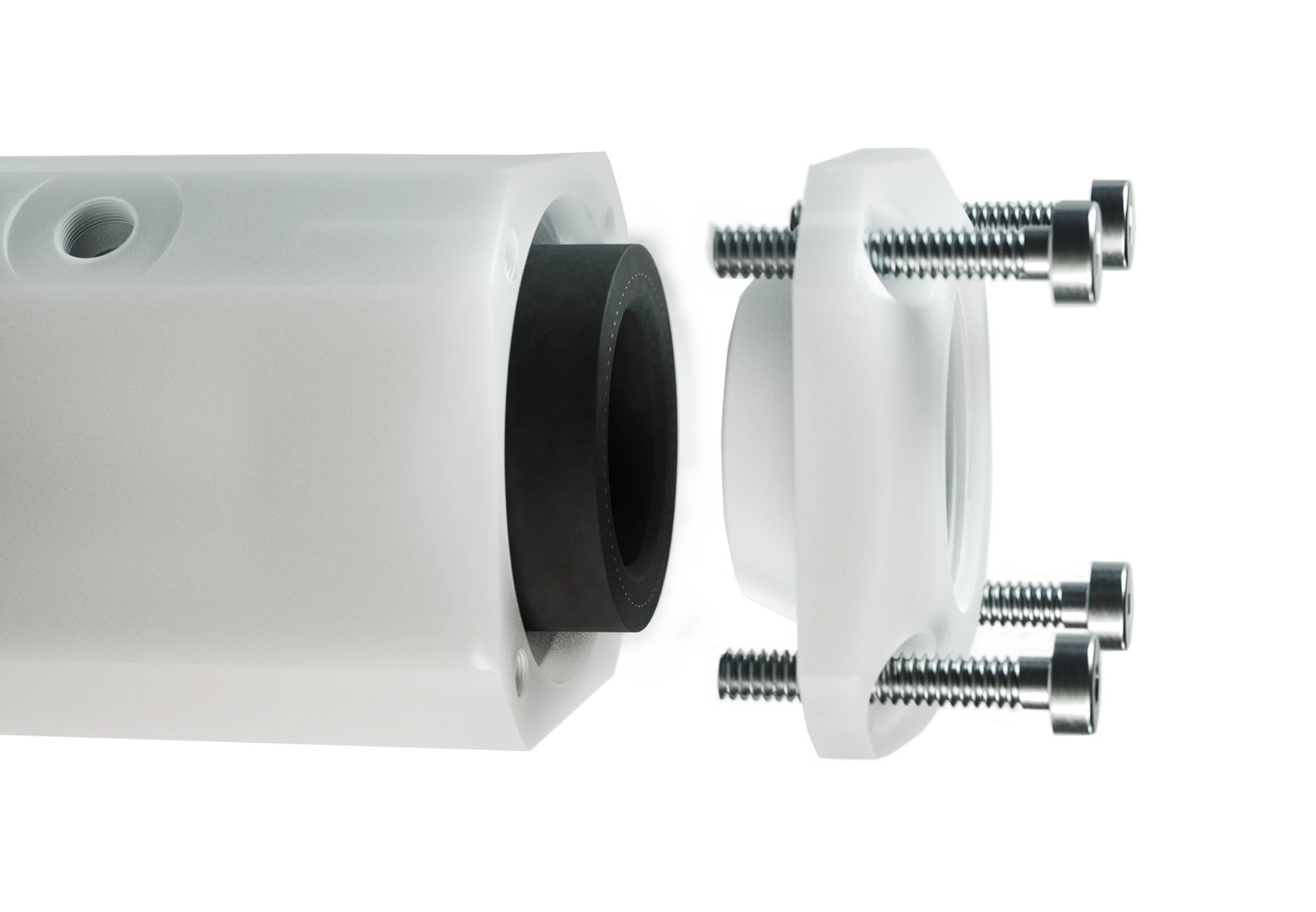

This series is a durable pinch valve collection, offering precise control of handling materials. Constructed with strong, resistant materials, including POM plastic and galvanized steel screws, it stands up to demanding industrial environments. Its straightforward design allows for easy installation and operation, making it a practical addition to any paint or powder workflow.
Especially suitable for: Powder Coating & Paint Industry

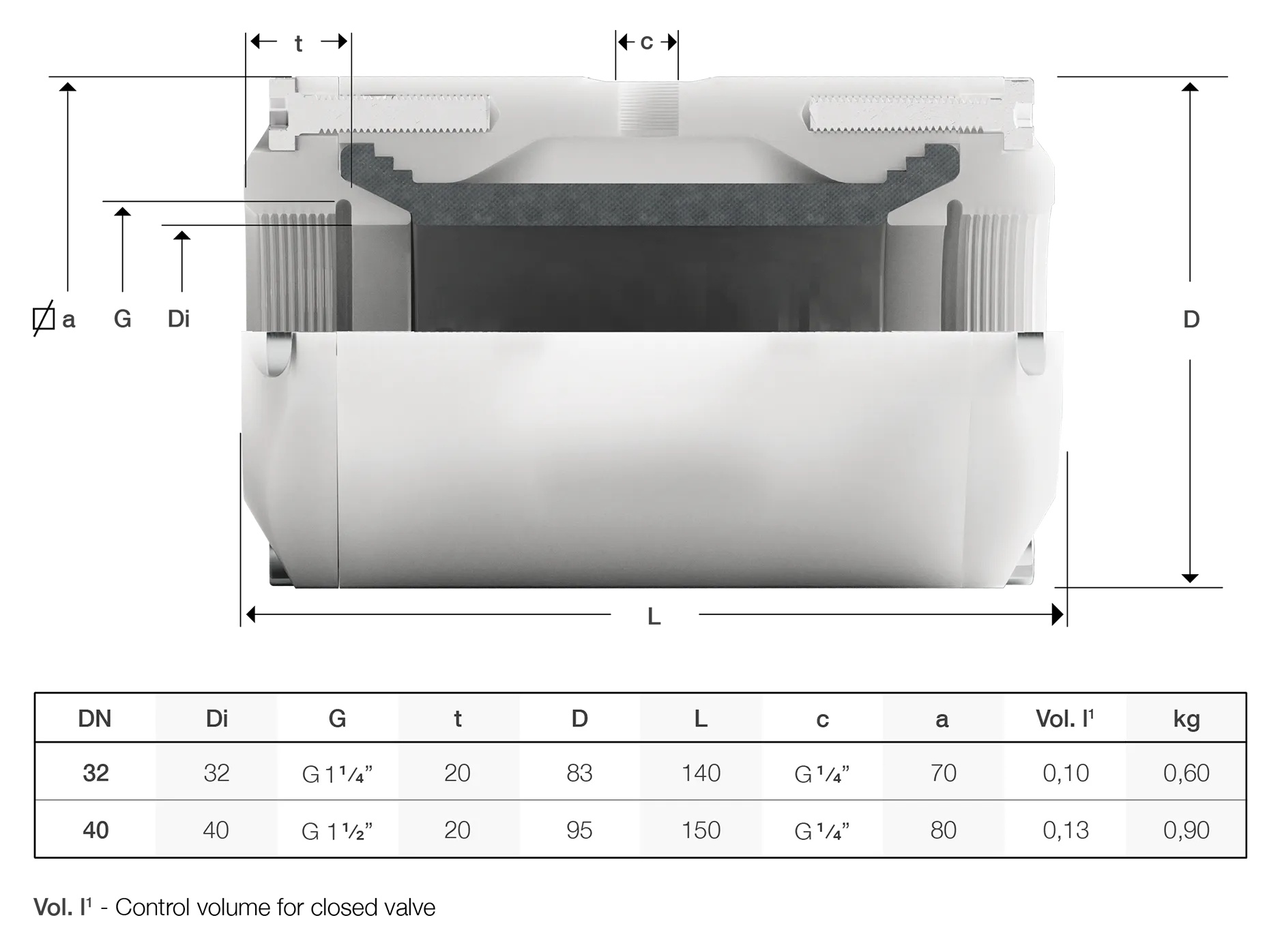

Nominal Widths: G 1¼”, 1½”
Threaded Cap: POM plastic (polyoxymethylene), natural white.
Sleeve: As selected...
Housing (not in contact with medium): POM plastic (polyoxymethylene), natural white.
Valve Settings:
DN: 032, 040.
Sleeve Quality: NR - 001 , NR-L - 011, NR-LH - 021, NBR-LH - 121, EPDM-L - 212, FPM - 303, CR - 401, CSM - 501.
Version Standard: 000, 100
*100 Silicone-Free assembled*
