Series 21
LOADING IMAGES

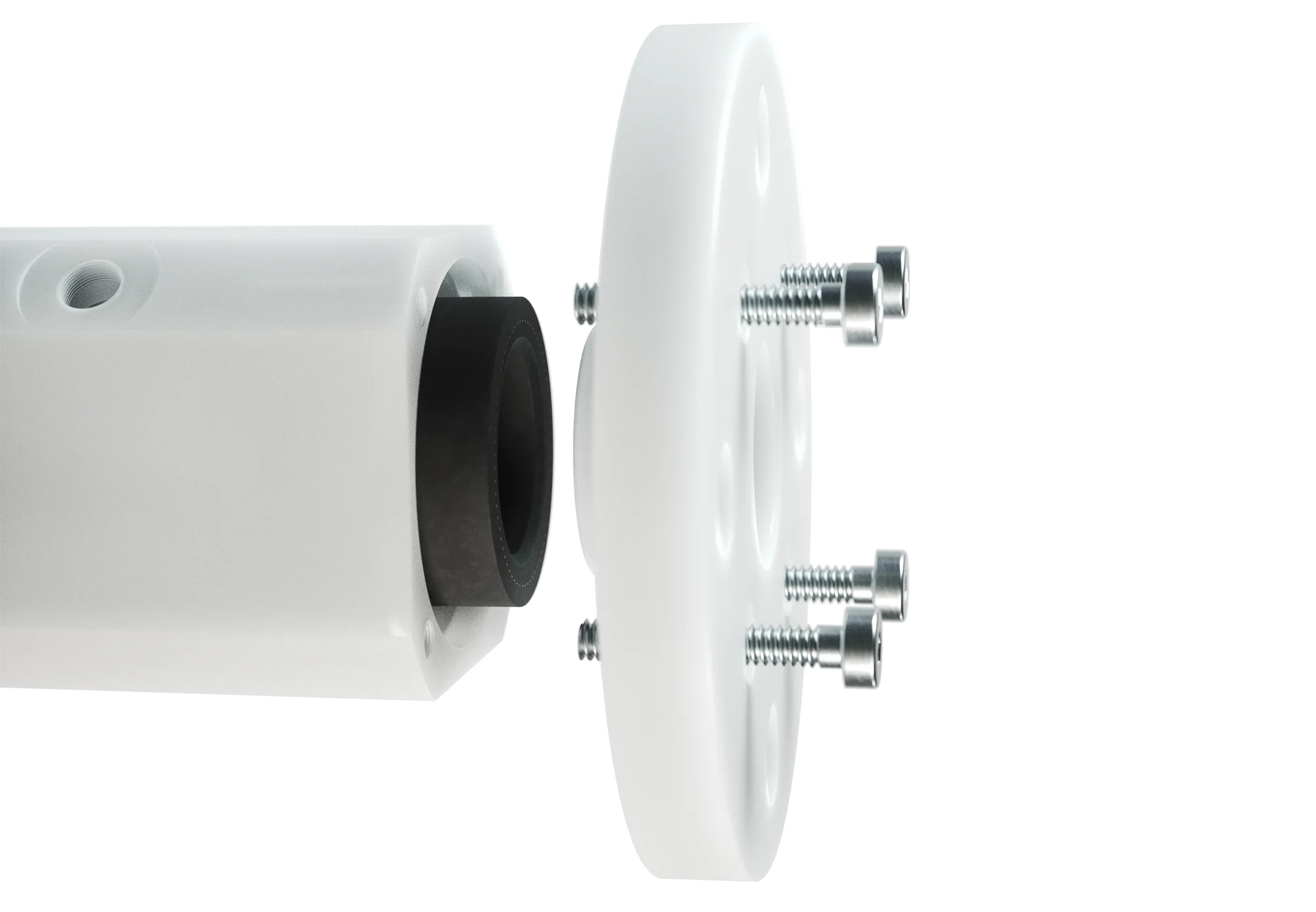

With its versatile DN32 and DN40 sizes, this series can accommodate a wide range of applications. The design of the pinch valves includes housing from natural white POM plastic, ensuring longevity and consistent performance.
Especially suitable for: Powder Coating & Paint Industry

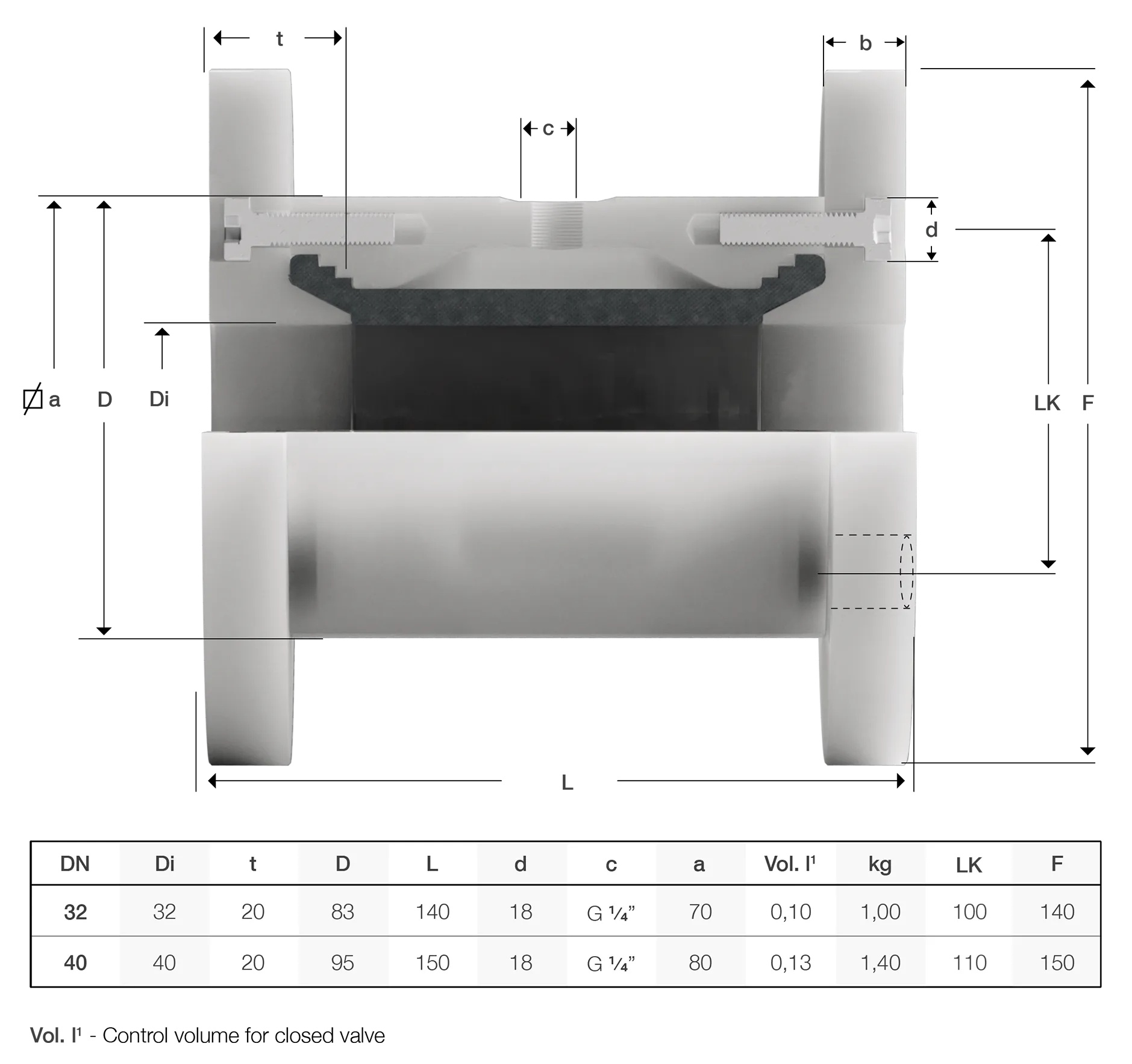

Nominal Widths: DN32 + DN40 (DIN PN 10/16)
Screws: Galvanised Steel.
Threaded Cap: POM plastic (polyoxymethylene), natural white.
Sleeve: As selected...
Housing (not in contact with medium): POM plastic (polyoxymethylene), natural white.
Valve Settings:
DN: 032, 040.
Sleeve Quality: NR - 001 , NR-L - 011, NR-LH - 021, NBR-LH - 121, EPDM-L - 212, FPM - 303, CR - 401, CSM - 501.
Version Standard: 000, 100
*100 Silicone-Free assembled*
