Series 40
LOADING IMAGES
This series of pinch valves is designed to handle both abrasive and delicate materials, perfect for industrial use. With multiple available sizes, it features an aluminium housing with a powder-coated finish that resists wear and tear.
Especially suitable for: Abrasive & Delicate Products

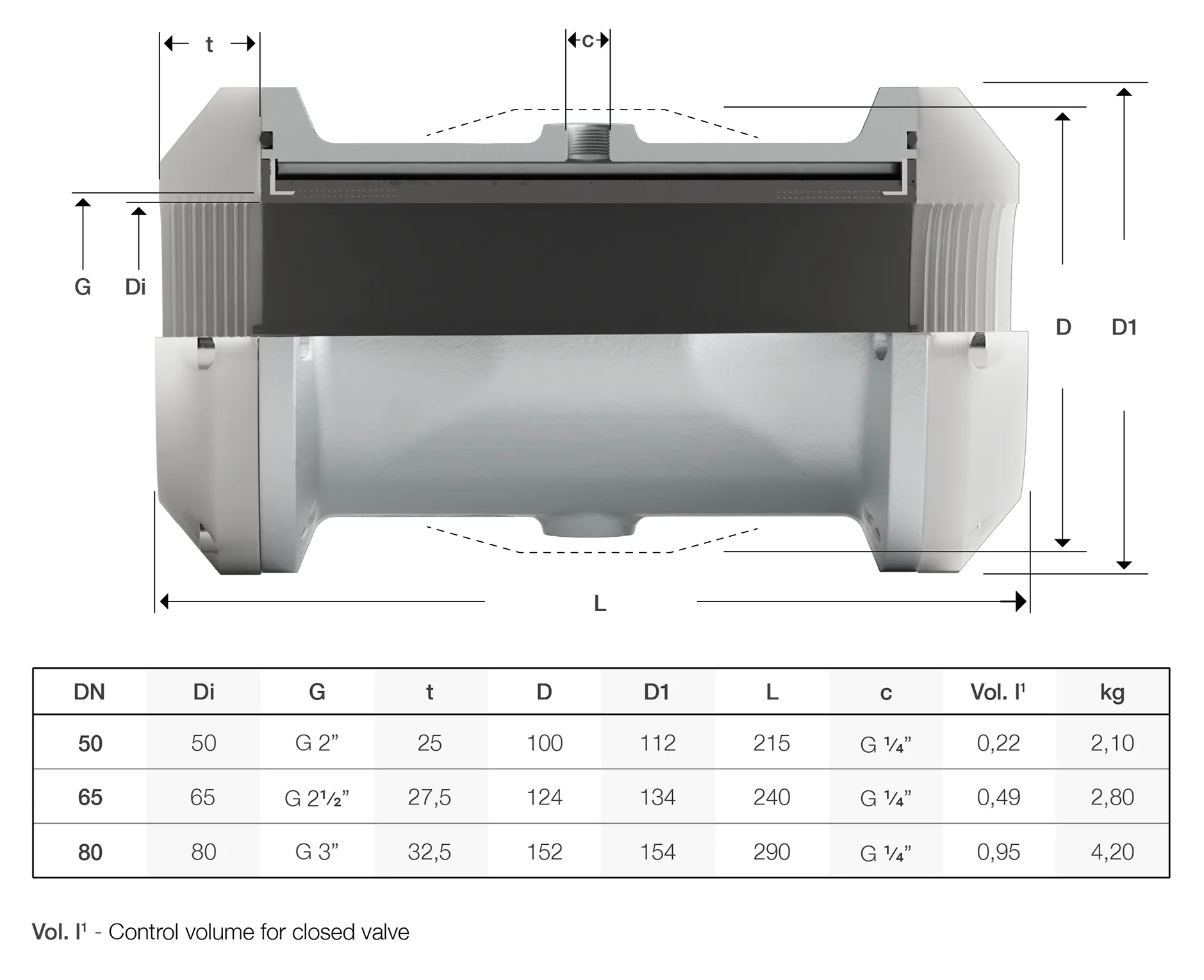

Nominal Widths: G 2”,2 ½”, 3”

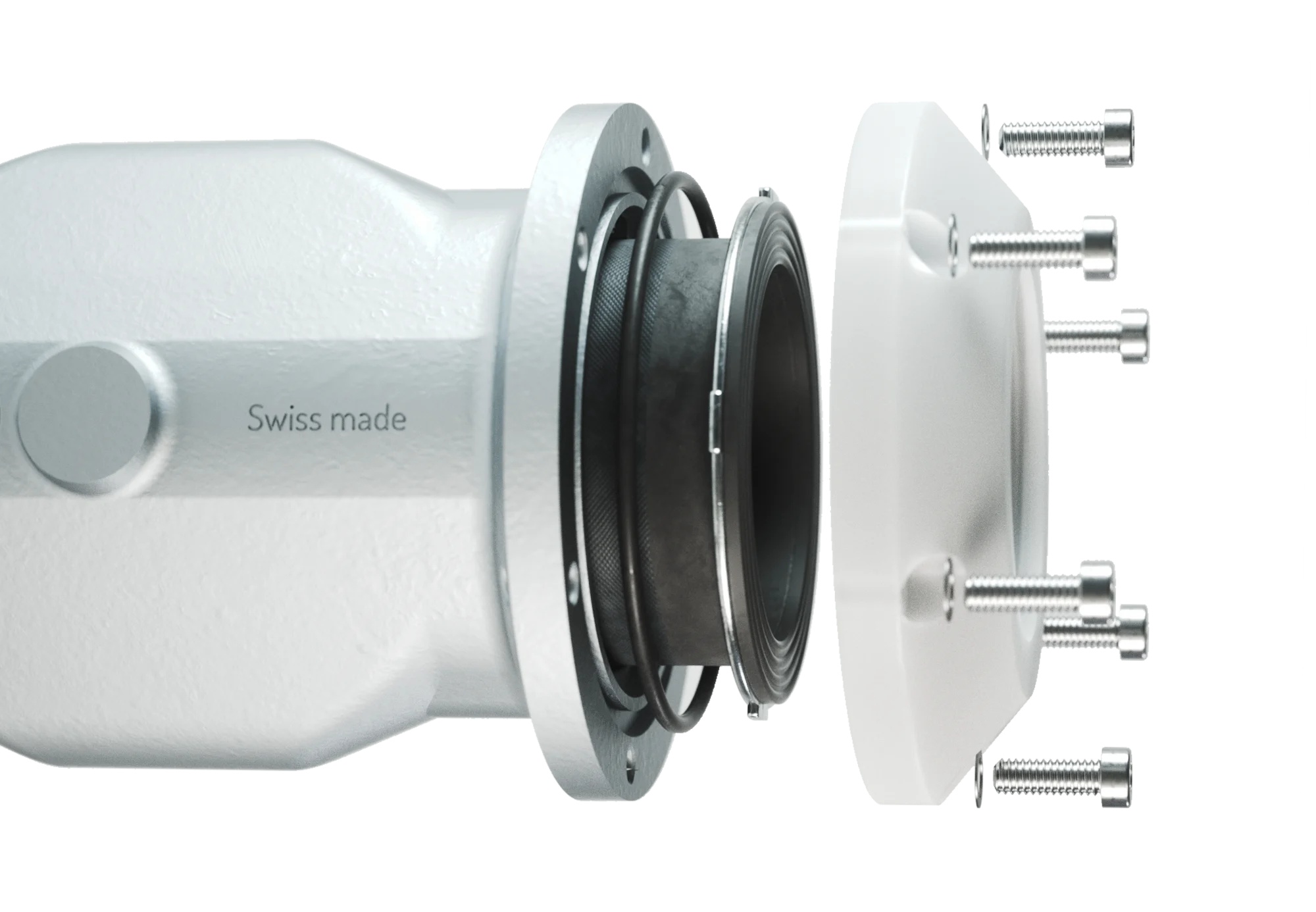

Screws Galvanized steel.
Threaded Cover: POM plastic (polyoxymethylene), natural white, POM-ELS plastic, conductible, black (ATEX-Version).
Sleeve: As selected...
O-Ring: Nitrile rubber NBR.
Housing (not in contact with medium): Aluminium casting G-Al Si 7 Mg, powder-coated silver grey.
Valve Settings:
DN: 050, 065, 080.
Sleeve Quality: NR - 001 , NR-L - 011, NR-LH - 021, NBR-LH - 121, EPDM-L - 212, FPM - 303, CR - 401, CSM - 501.
ATEX Version Sleeve Quality: NR-E - 031, NR-LE - 061, NBR-LE - 161, EPDM-LE - 261
Version Standard: 000, 100
Version ATEX: 022
*100 Silicone-Free assembled*
