Series 41
LOADING IMAGES

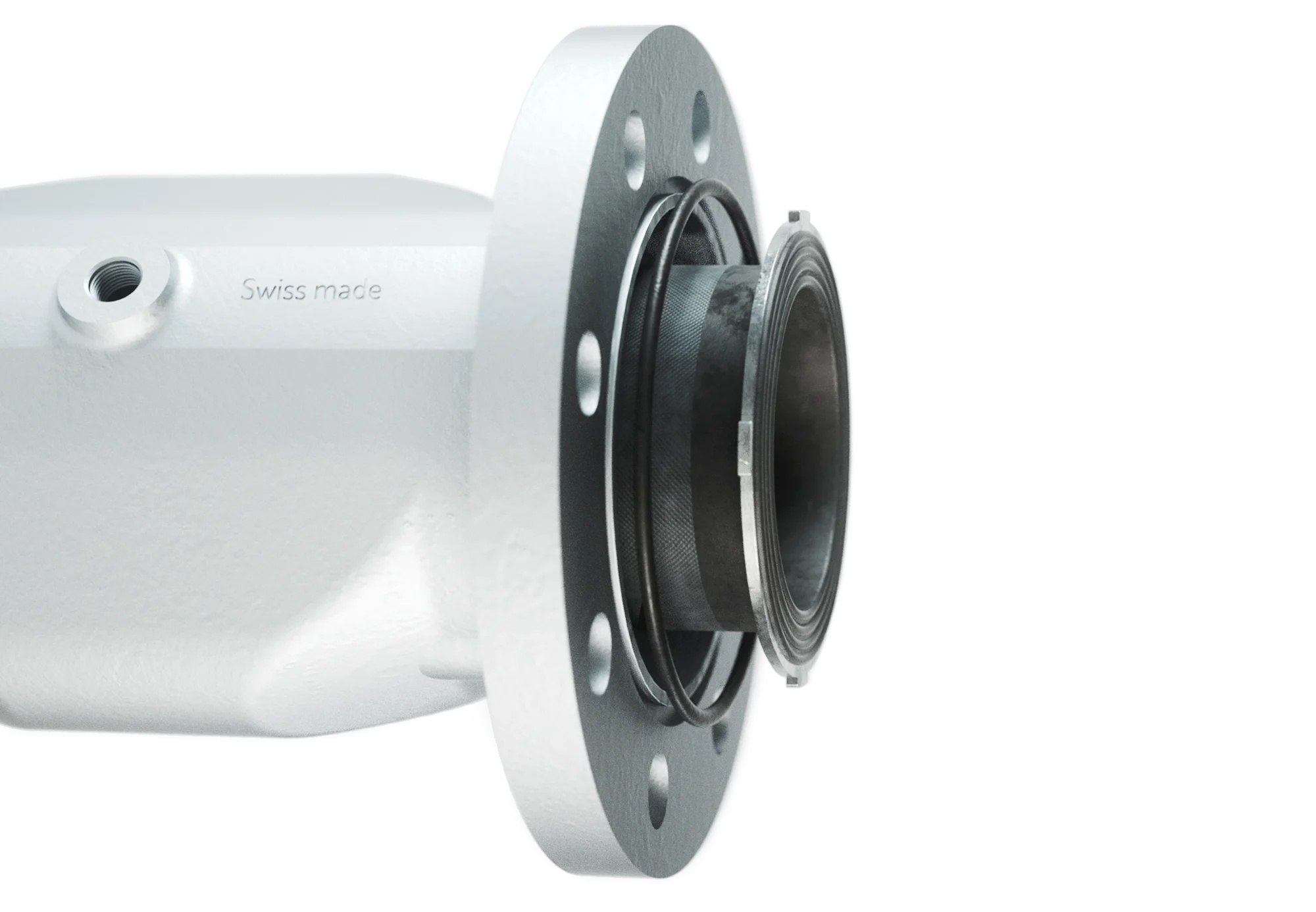

This series features a solid aluminum housing with a powder-coated finish for longevity and a rubber O-ring for reliable sealing. Ideal for a variety of industrial applications, this pinch valve series ensures consistent performance and is available in multiple sizes.

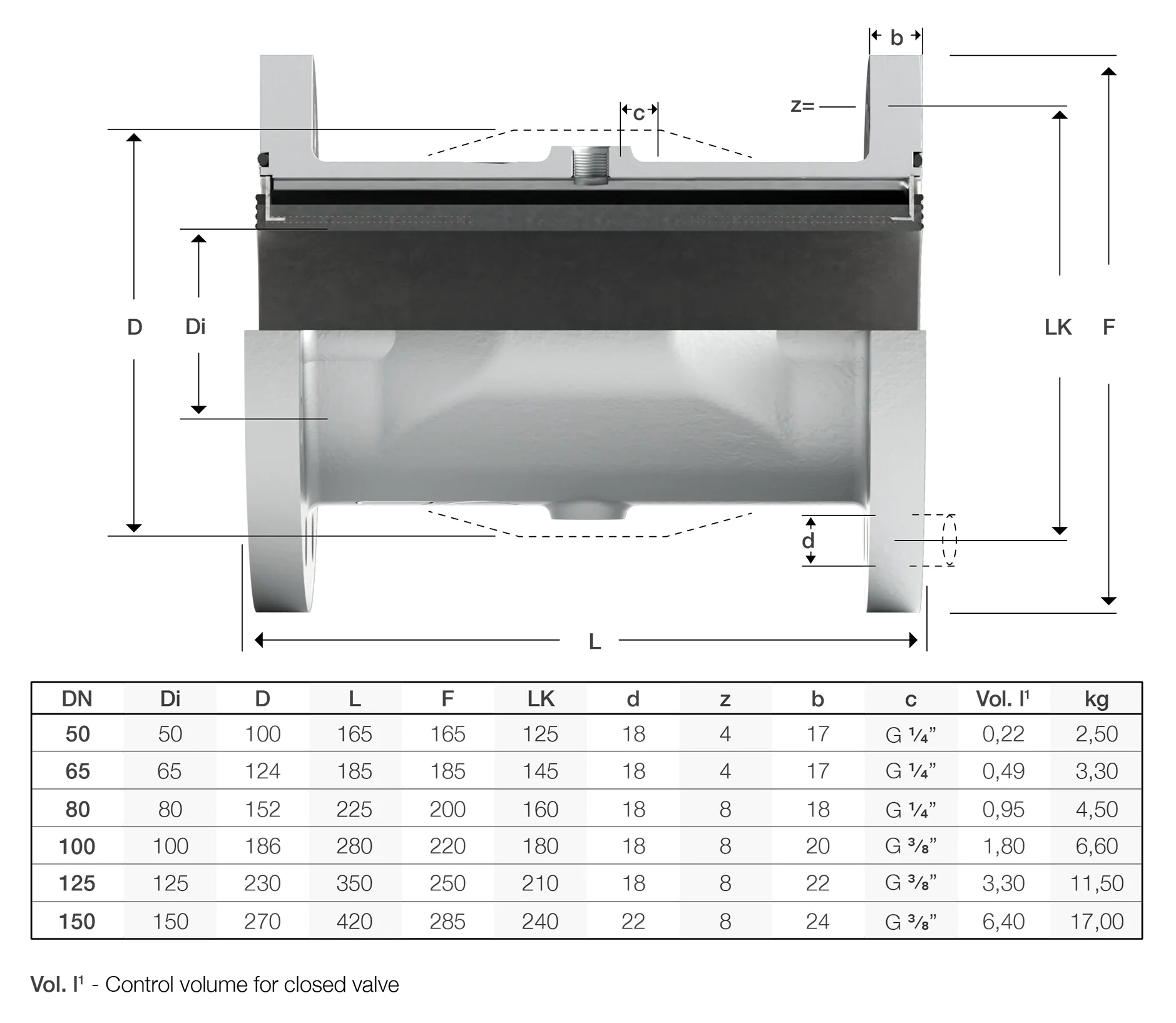

Nominal Widths: DN50, 65, 80, 100, 125, 155 - DIN PN 10/16.
O-Ring: Nitrile rubber NBR.
Sleeve: As selected...
Housing (not in contact with medium): Aluminium casting G-Al Si 7 Mg, powder-coated silver grey.
Valve Settings:
DN: 050, 065, 080, 100, 125, 150.
Sleeve Quality: NR - 001 , NR-L - 011, NR-LH - 021, NBR-LH - 121, EPDM-L - 212, FPM - 303, CR - 401, CSM - 501.
ATEX Version Sleeve Quality: NR-E - 031, NR-LE - 061, NBR-LE - 161, EPDM-LE - 261
Version Standard: 000, 100
Version ATEX: 022
*100 Silicone-Free assembled*
