Series 48
LOADING IMAGES
The construction of this series features stainless steel and aluminum housing with a powder-coated finish to ensure durability and hygiene. This pinch valve is designed for easy integration, maintenance, and the ability to maintain a consistent flow of materials.
Especially suitable for: Abrasive & Delicate Products

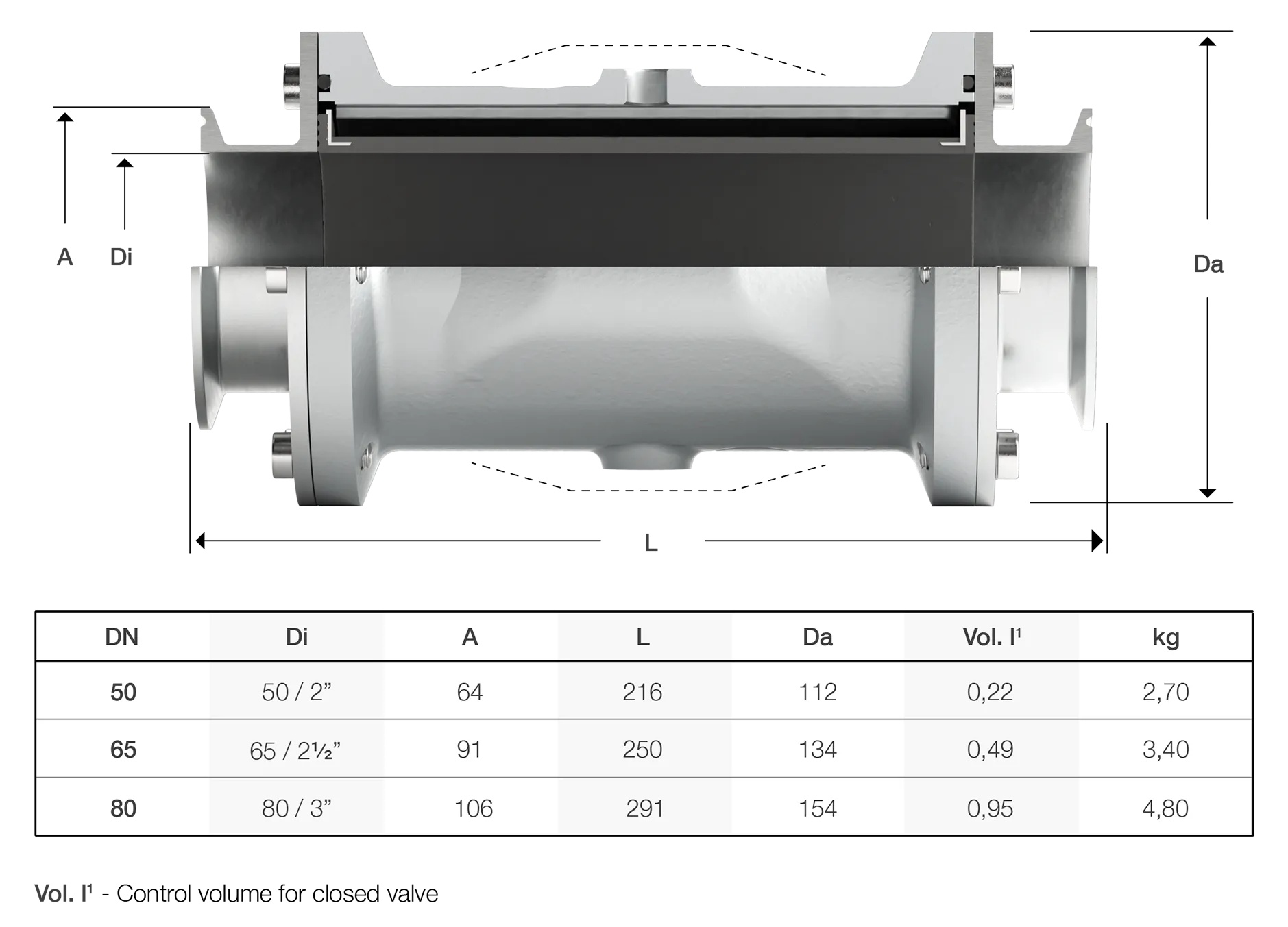

Nominal Widths: 2”, 2 ½”, 3”, DIN 32676 series A
Screws: Stainless steel A4

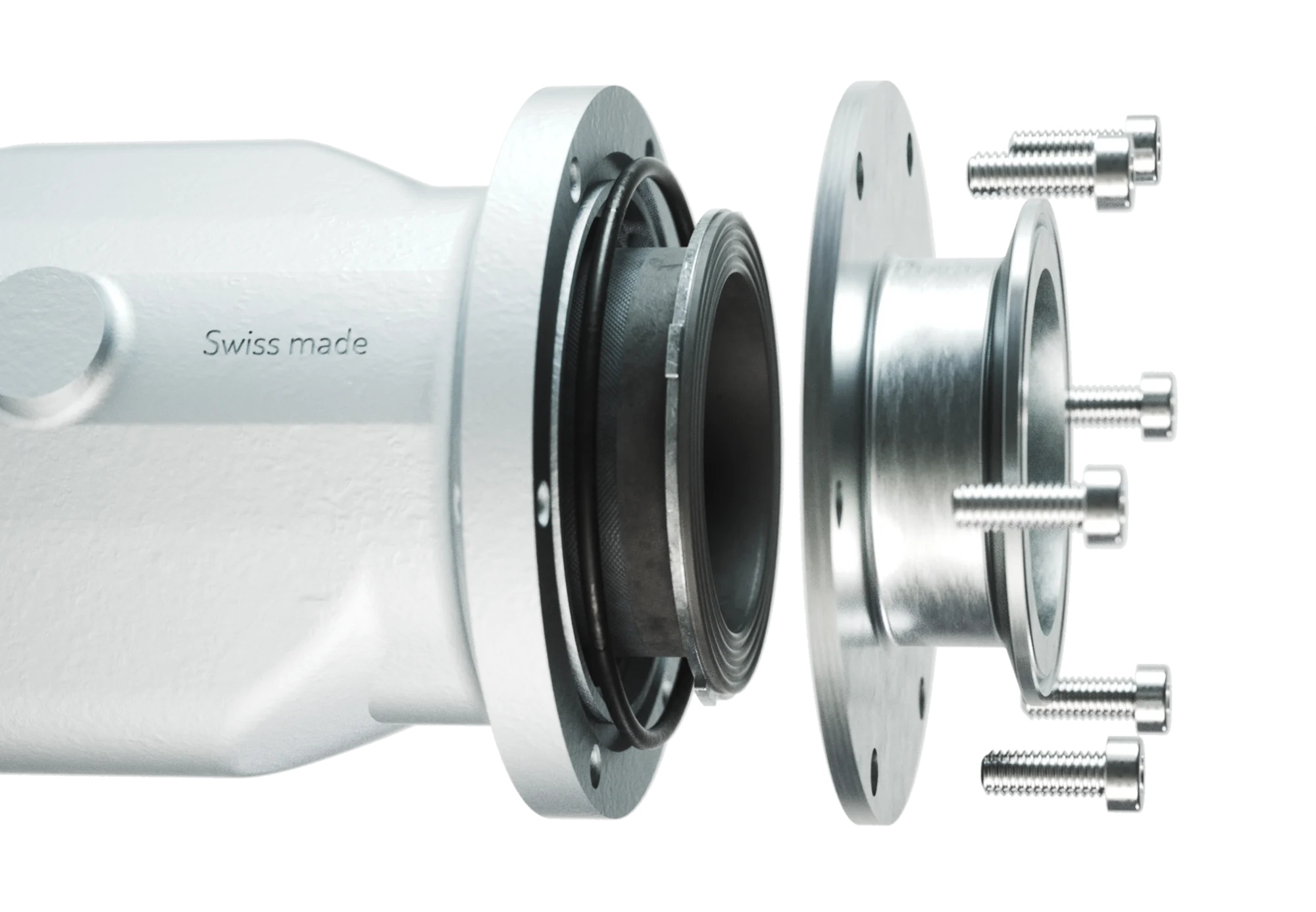

Tri-Clamp: Stainless steel 1.4404 (DIN 32676, series A)
Sleeve: As selected...
O-Ring: Nitrile rubber NBR
Housing (not in contact with medium): Aluminium casting G-Al Si 7 Mg, powder-coated silver grey
Valve Settings:
DN: 050, 065, 080.
Sleeve Quality: NR - 001 , NR-L - 011, NR-LH - 021, NBR-LH - 121, EPDM-L - 212, FPM - 303, CR - 401, CSM - 501.
ATEX Version Sleeve Quality: NR-E - 031, NR-LE - 061, NBR-LE - 161, EPDM-LE - 261
Version Standard: 000, 100
Version ATEX: 022
*100 Silicone-Free assembled*
