Series 50
LOADING IMAGES

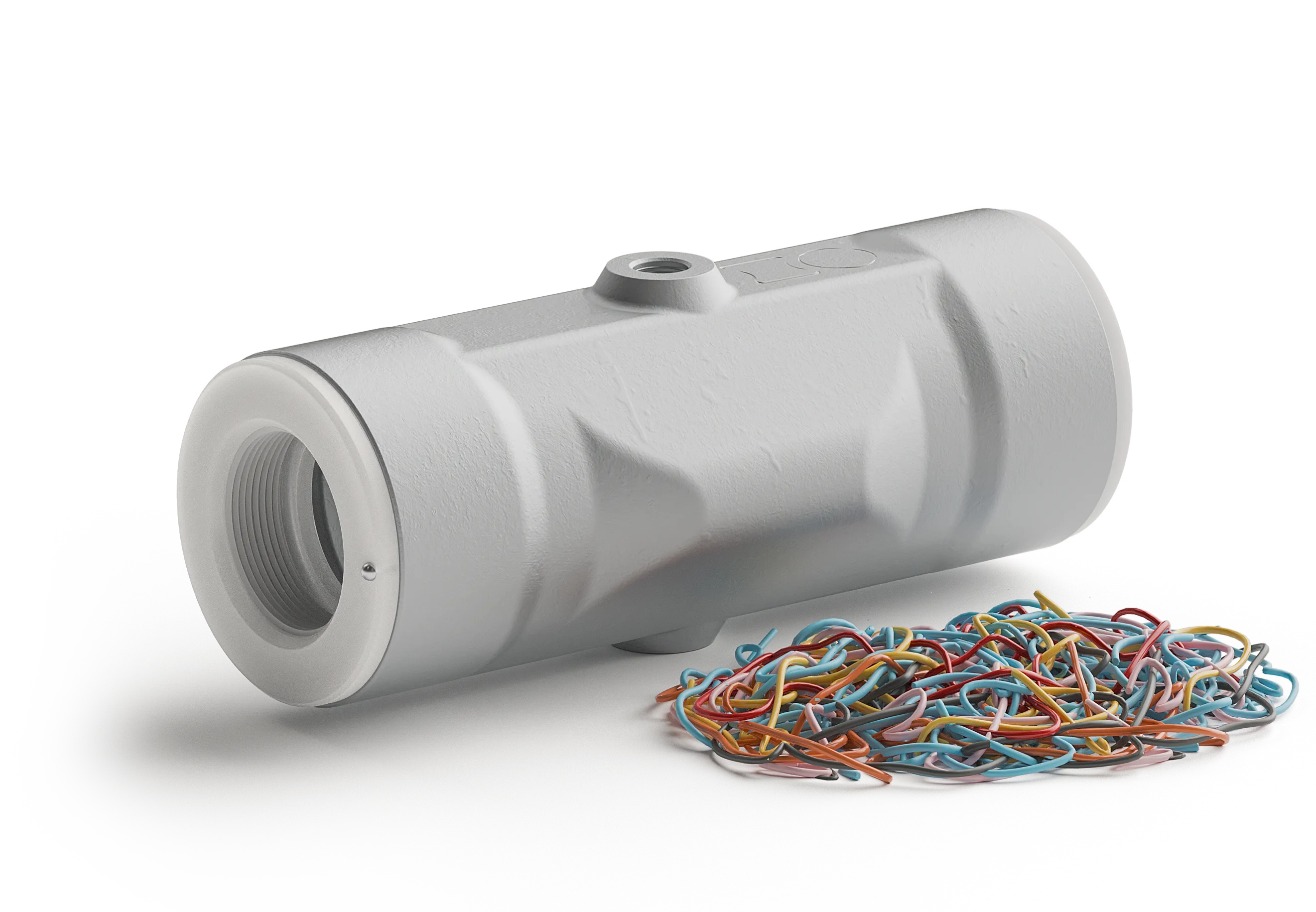

Designed with an aluminium housing and a durable O-ring, this pinch valve provides precise control in various industrial settings. Its compact design and versatility make it the number-one choice for fluid control in machinery and systems.
Especially suitable for: Railroad Industry & Apparatus Engineering.

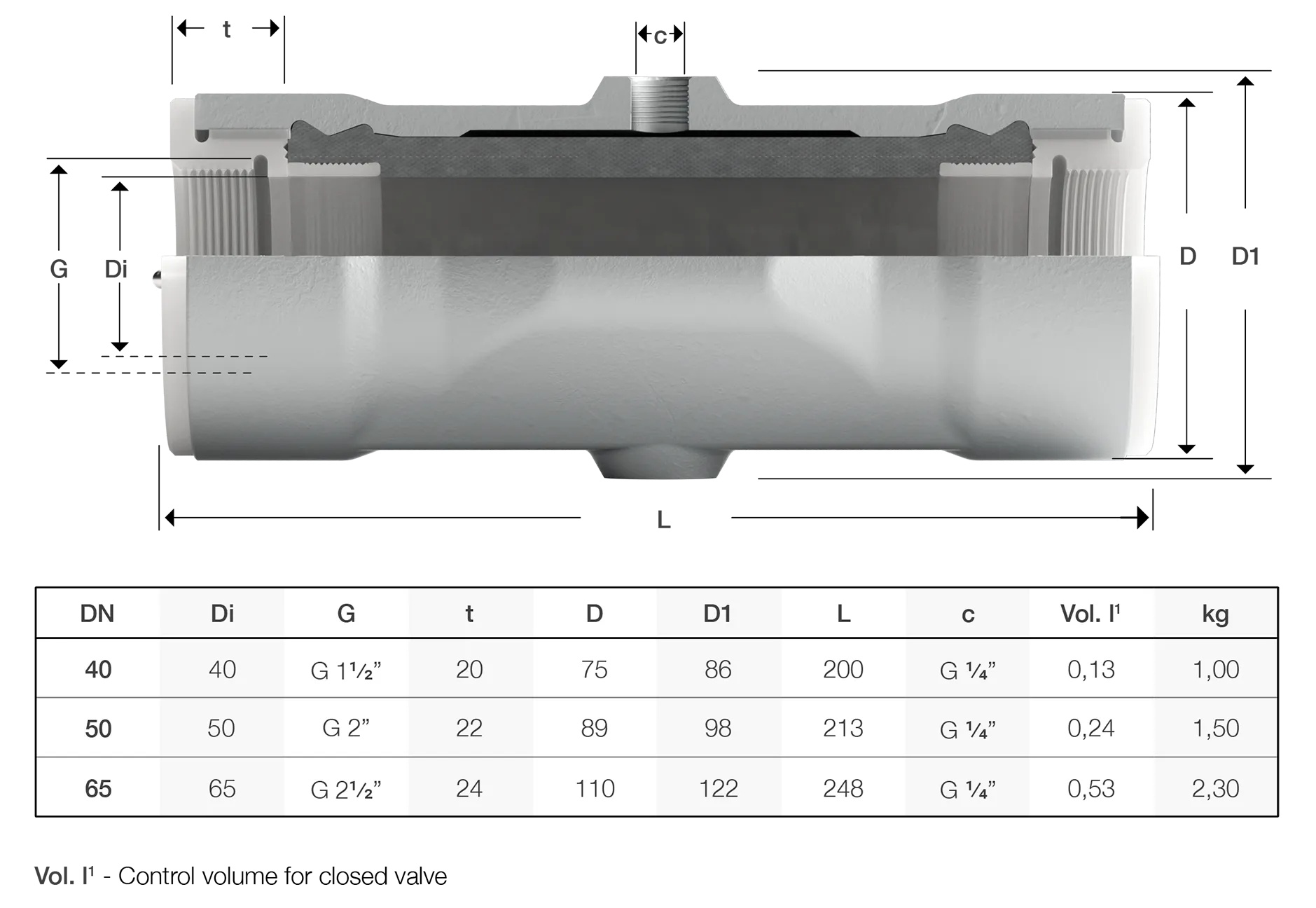

Nominal Widths: G 1 ½”, 2”, 2 ½”

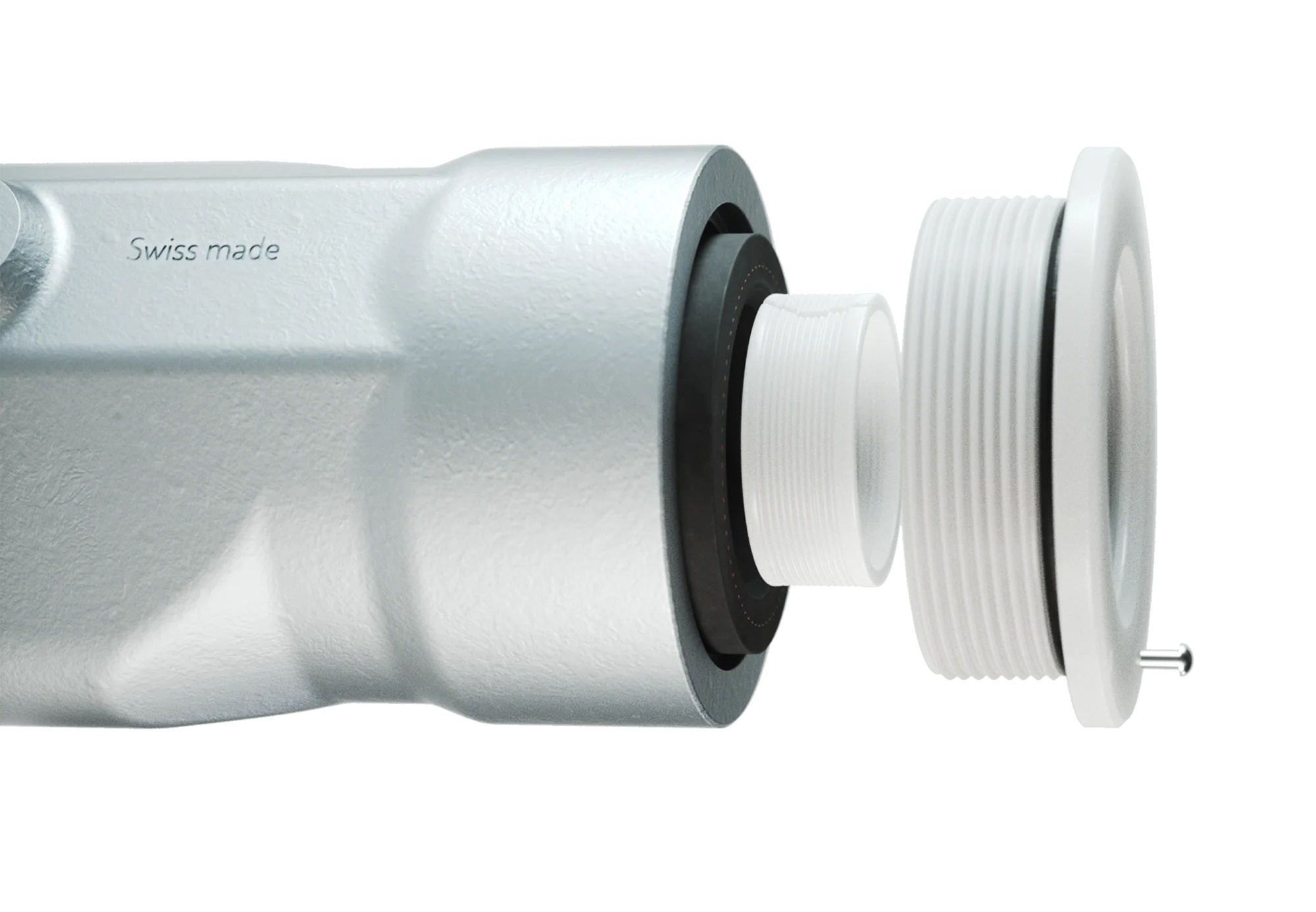

Threaded Ring: POM plastic (polyoxymethylene), natural white.
Clamping Ring: POM plastic (polyoxymethylene), natural white.
Sleeve: As selected...
Housing (not in contact with medium): Aluminium casting G-Al Si 7 Mg, powder-coated silver grey.
Valve settings:
DN: 050, 065, 080.
Sleeve Quality: NR - 001 , NR-L - 010, NR-LH - 020, NBR-LH - 120, EPDM-L - 212, FPM - 303, CR - 400, CSM - 500.
Version Standard: 000, 100
*100 Silicone-Free assembled*
