Series 60
LOADING IMAGES

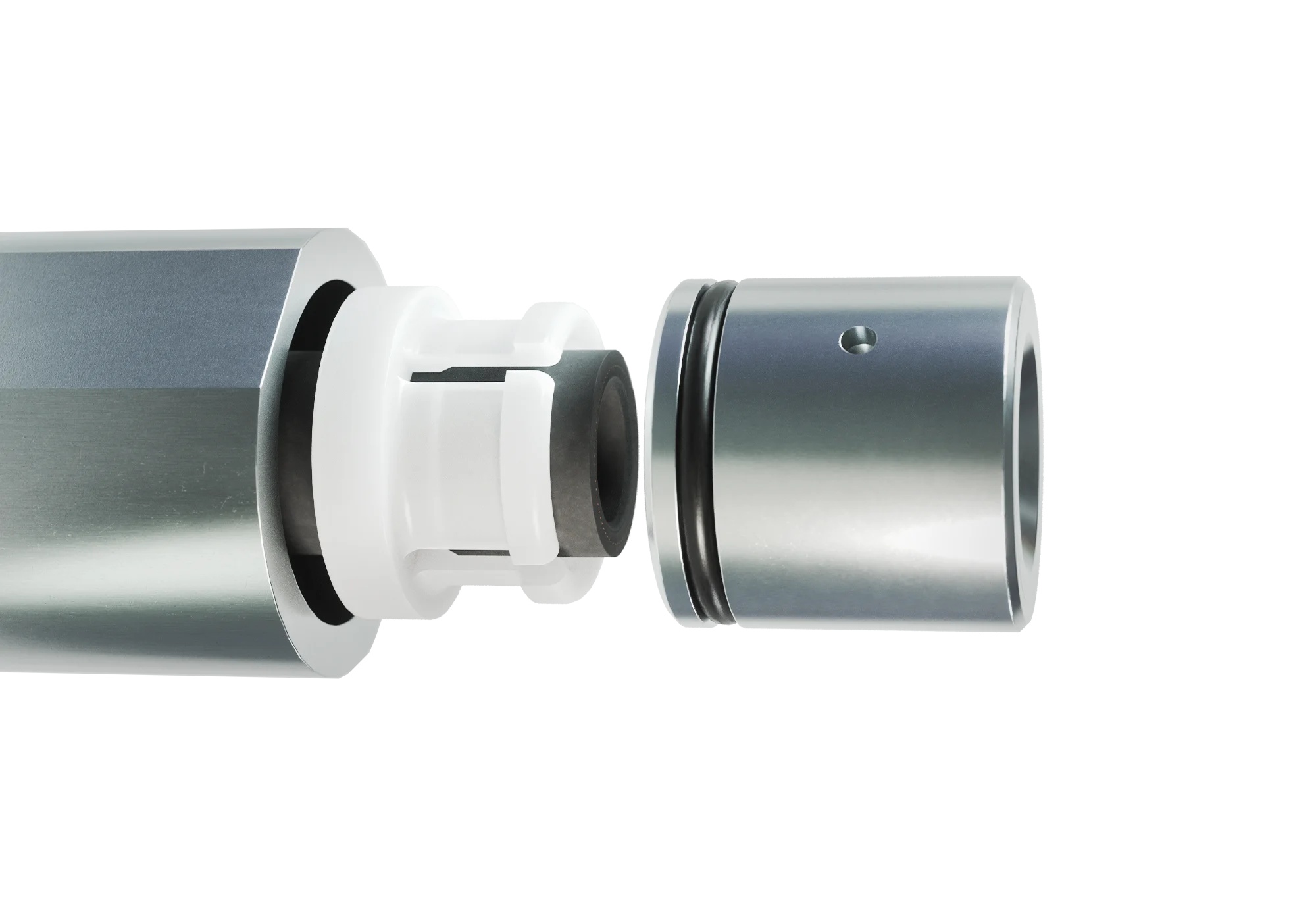

This series of pinch valves is a precision instrument, offering fine control over fluid flow in sensitive environments. Additionally, this valve features a stainless steel construction and a simple screw connection for easy installation and maintenance. Its compact and durable design ensures reliable operation for precise fluid management in medical devices and other high-precision applications.
Especially suitable for: Medical Engineering and Microdosing

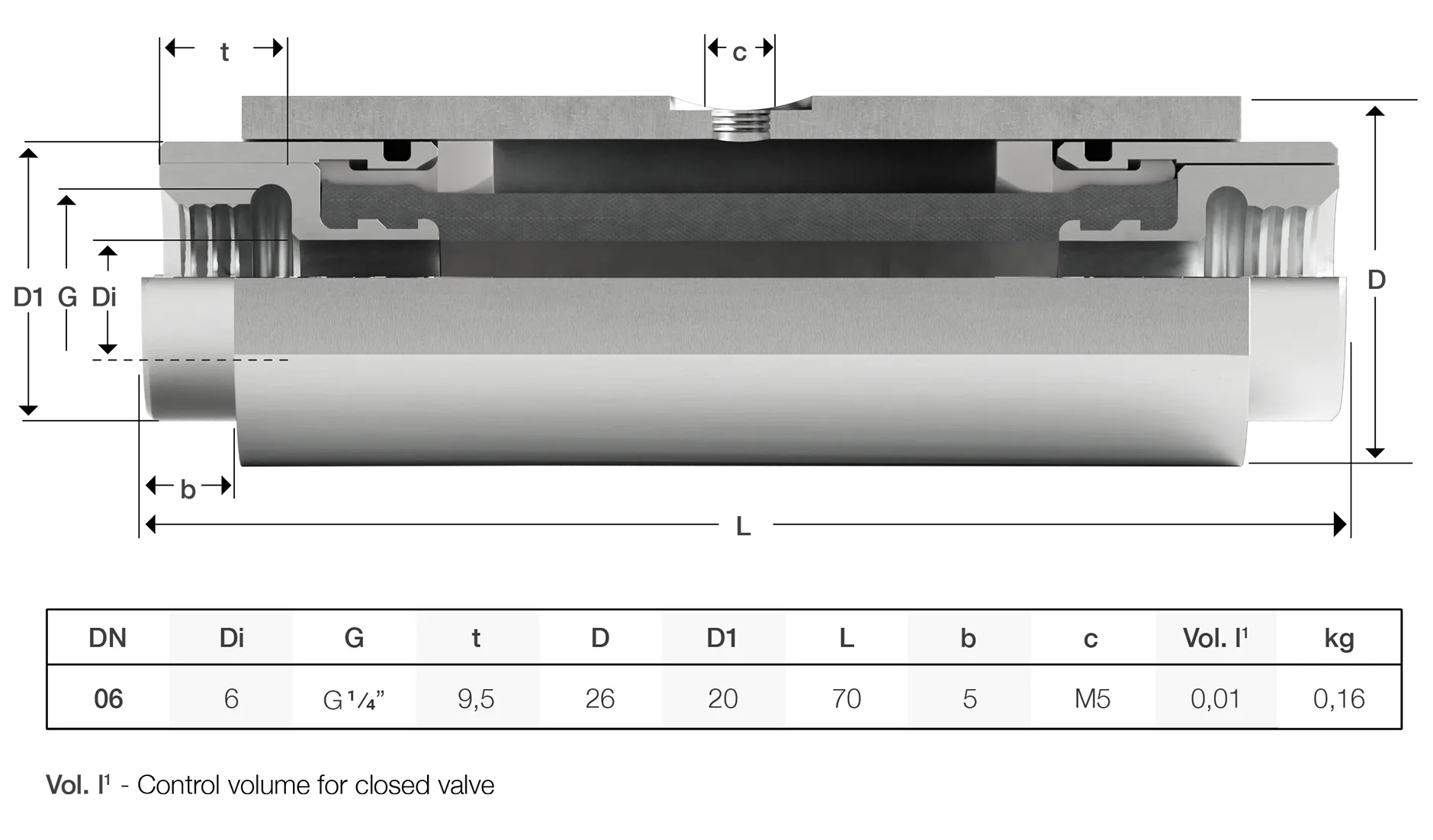

Nominal Widths: G ¼”
Screw connection: Stainless Steel 1.4404
O-Ring: Nitrile rubber NBR
Sleeve: As selected...
Clamping cone: POM plastic (polyoxymethylene), natural white
Housing (not in contact with medium): Stainless steel 1.4404
Valve Settings:
DN: 060.
Sleeve Quality: NR - 001 , NR-L - 011, NR-LH - 021, NBR-LH - 121, EPDM-L - 212, FPM - 303, CR - 401, CSM - 501.
Version Standard: 000, 100
*100 Silicone-Free assembled*
