Series 70
LOADING IMAGES

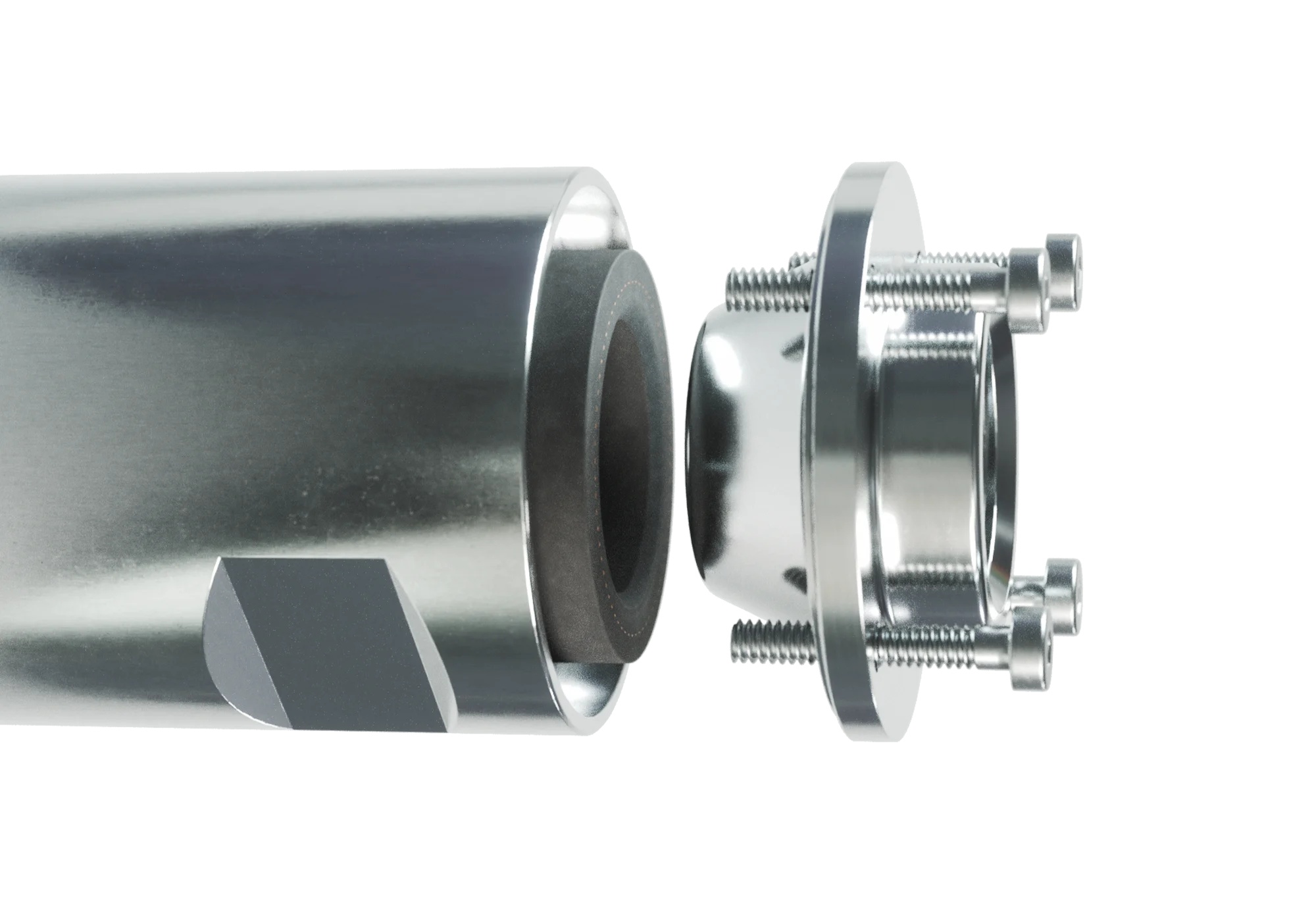

This pinch valve series is engineered to meet the requirements of the pharmaceutical, chemical and food industries, ensuring safe and efficient fluid control. Made from high-quality stainless steel, it provides a clean and durable solution for managing flow in critical processes. This valve series comes in a wide range of sizes and is designed for easy integration into existing systems, promising reliability and precision in various applications.
Especially suitable for: Pharmaceutical, chemical & food industry.

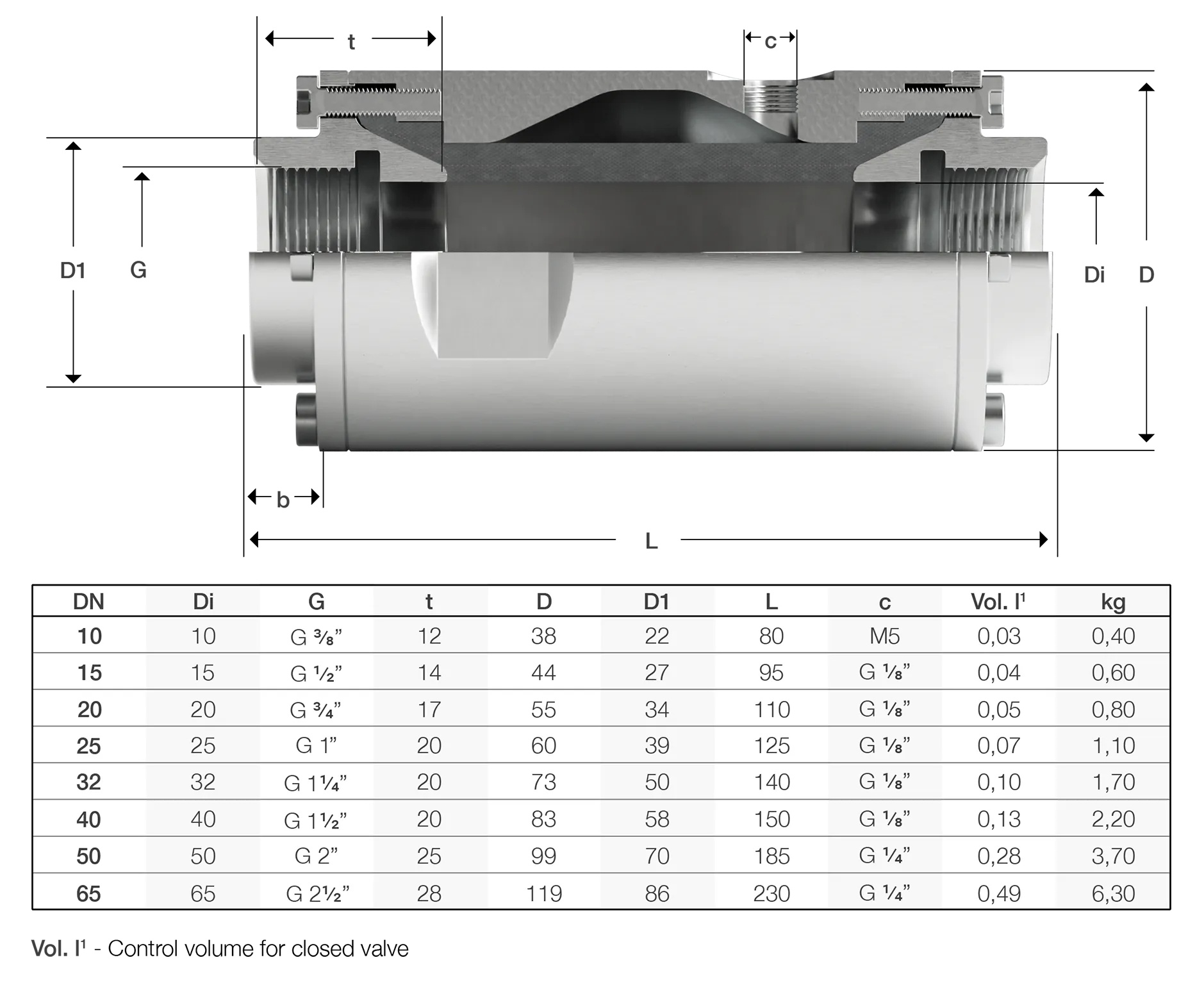

Nominal Widths: G ⅜”, ½”, ¾”, 1”, 1 ¼”, 1 ½”, 2”, 2 ½”
Thread Connection: Stainless steel A4
Threaded Cover: Stainless steel 1.4404
Sleeve: As selected...
Housing (not in contact with medium): Stainless steel 1.4404
Valve Settings:
DN: 010, 015, 020, 025, 032, 040, 050, 065
Sleeve Quality: NR - 001 , NR-L - 011, NR-LH - 021, NBR-LH - 121, EPDM-L - 212, FPM - 303, CR - 401, CSM - 501.
ATEX Version Sleeve Quality: NR-E - 031, NR-LE - 061, NBR-LE - 161, EPDM-LE - 262.
Version Standard: 000, 100
Version ATEX: 000, 100
*100 Silicone-Free assembled*
