Series 78
LOADING IMAGES
With a tri-clamp connection for secure and easy installation and a robust stainless-steel body, this series ensures longevity and resistance to corrosion. This valve is designed to perform consistently under high demands, making it an essential component for precise fluid management in sensitive production environments.
Especially suitable for: Pharmaceutical, Chemical & Food Industry.
Nominal Widths: Tri-Clamp ½”, ¾”, 1”, 1¼ ”, 1½ ”, 2”, DIN 32676 Ser.
Screws: Stainless steel A4
Tri-Clamp: Stainless steel 1.4404
Sleeve: As selected...
Housing (not in contact with medium): Stainless steel 1.4404
Valve Settings:

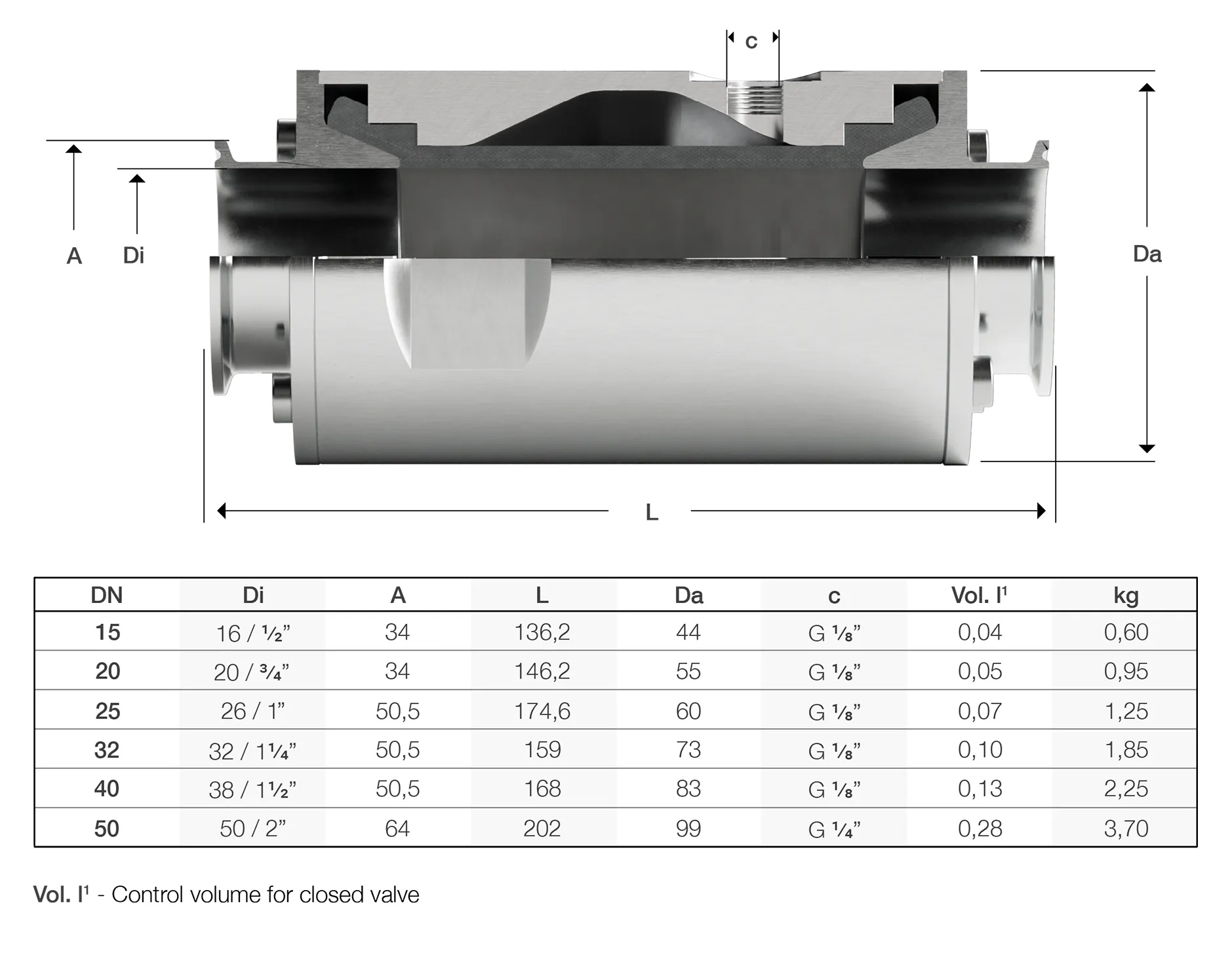

DN: 015, 020, 025, 032, 040, 050.
Sleeve Quality: NR - 001 , NR-L - 011, NR-LH - 021, NBR-LH - 121, EPDM-L - 212, FPM - 303, CR - 401, CSM - 501.
ATEX Version Sleeve Quality: NR-E - 031, NR-LE - 061, NBR-LE - 161, EPDM-LE - 262.
Version Standard: 000, 100
Version ATEX: 000, 100
*100 Silicone-Free assembled*
