Series 80
LOADING IMAGES
The Series 80 pinch valve is a versatile and robust valve that caters to a wide array of customer-specific applications, offering flexibility in fluid control. Its construction includes various material options like POM and aluminium, ensuring compatibility with different mediums and environments. This valve series is designed for easy installation and operation, featuring multiple sizes and connection types to fit custom requirements in diverse systems.
Especially suitable for: Customer Specific Applications

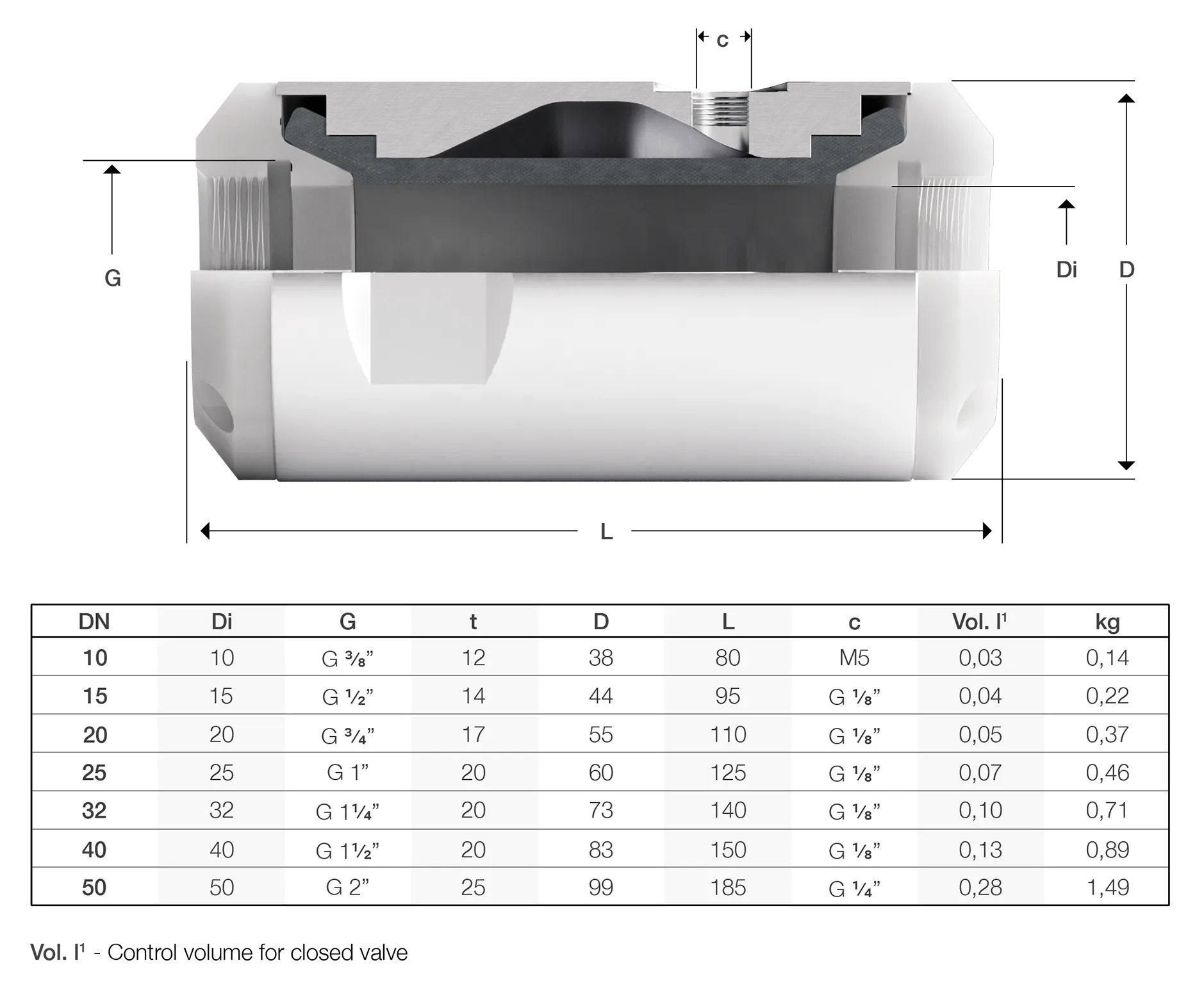

Nominal Widths: G ⅜”, ½", ¾", 1”, 1¼", 1½", 2".

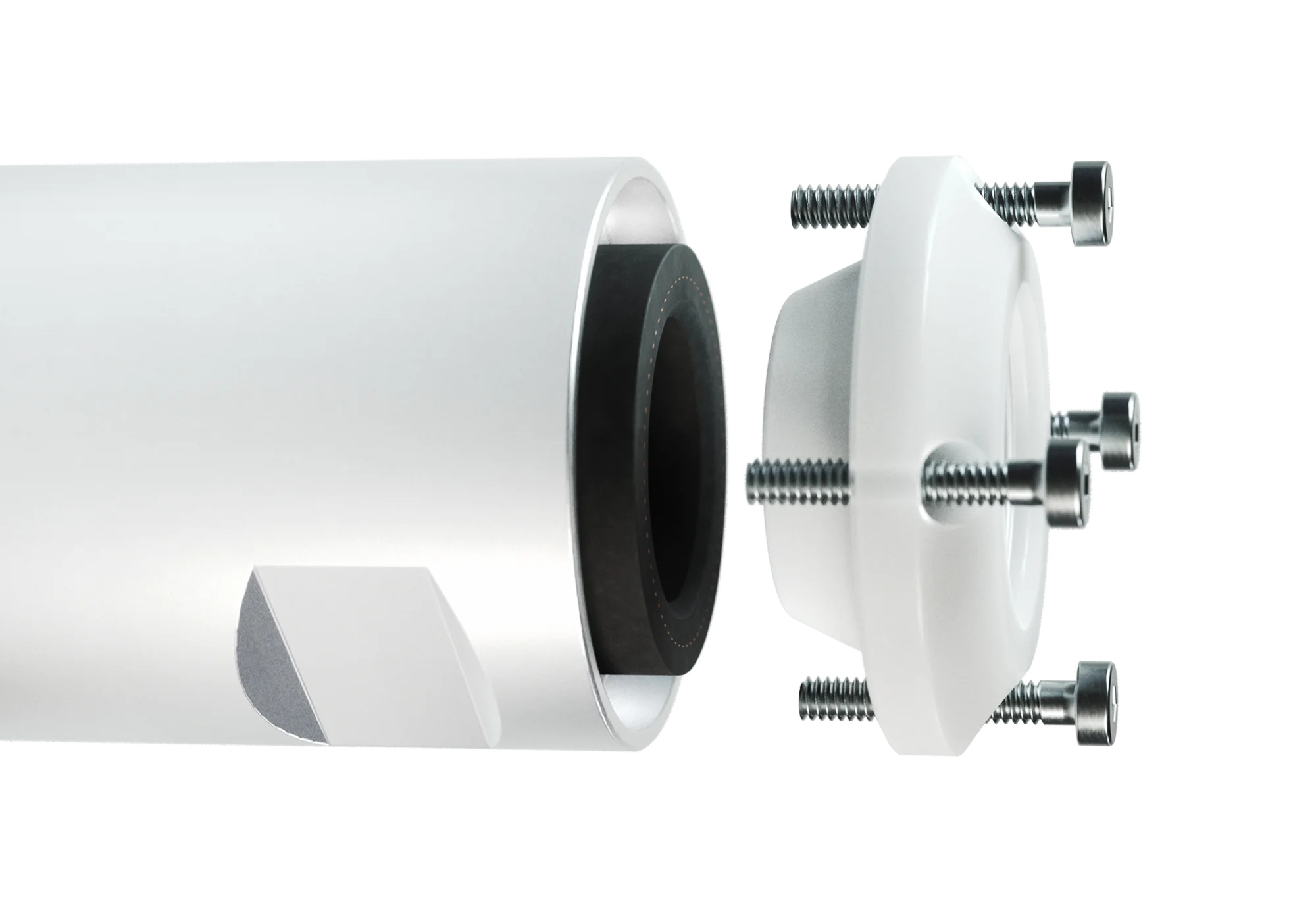

Threaded cover: Plastic POM, natural white\n plastic POM-ELS, conductible, black\n aluminium, colourless anodised\n stainless steel 1.4404.
Sleeve: As selected...
Housing (not in contact with medium): Aluminium alloy 6026, colourless anodised.
Valve Settings:
DN: 010, 015, 020, 025, 032, 040, 050.
Sleeve Quality: NR - 001 , NR-L - 011, NR-LH - 021, NBR-LH - 121, EPDM-L - 212, FPM - 303, CR - 401, CSM - 501.
ATEX Version Sleeve Quality: NR-E - 031, NR-LE - 061, NBR-LE - 161, EPDM-LE - 262.
Version Standard: 000, 100
Version ATEX: 000, 100
*100 Silicone-Free assembled*
