Series 88
LOADING IMAGES
The Series 88 pinch valve is designed for optimal performance in food and beverage applications, offering precise flow control for liquids. The Tri-Clamp connection ensures a secure and sanitary connection, while the stainless steel construction provides durability and resistance to corrosion. This valve is ideal for maintaining high standards of hygiene and quality in the processing of consumable products.
Especially suitable for: Food and Beverages.

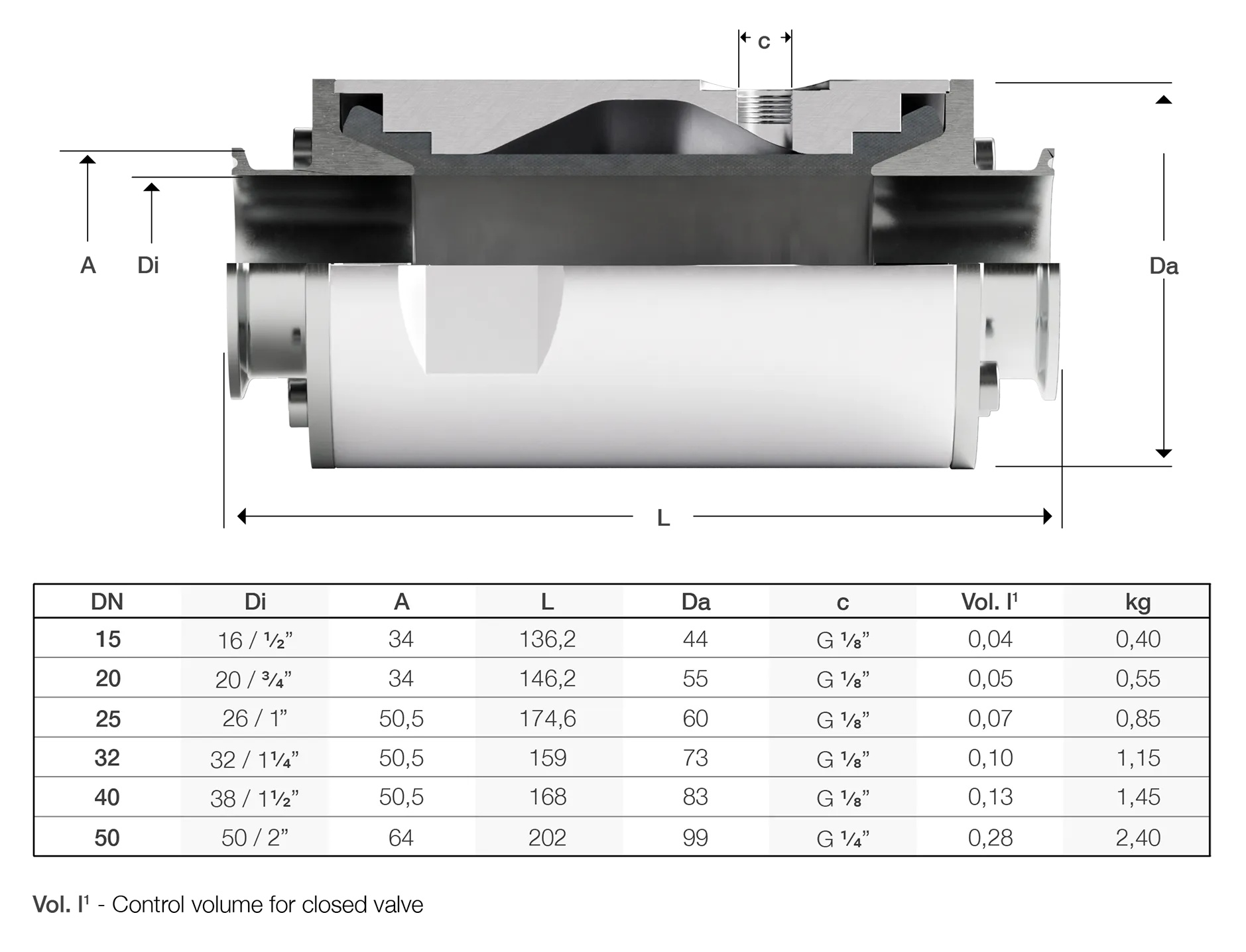

Nominal Widths: Tri-Clamp ½”, ¾”, 1”, 1¼”, 1½”, 2”, DIN 32676 ser. A
Screws: Stainless steel A4.

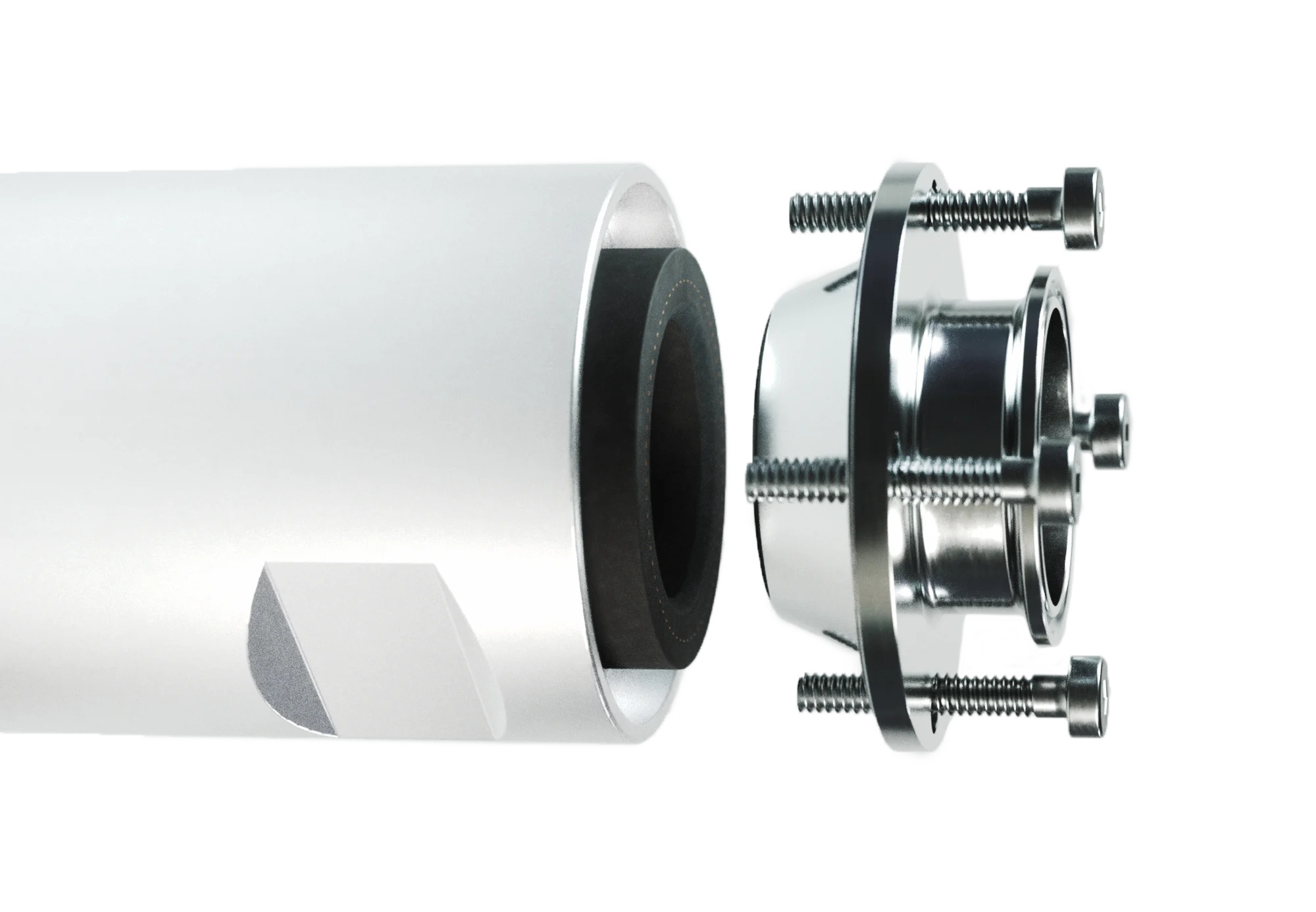

Tri-Clamp: Stainless steel 1.4404
Sleeve: As selected...
Housing (not in contact with medium): Aluminium alloy 6026, colourless anodised.
Valve settings:
DN: 015, 020, 025, 032, 040, 050.
Sleeve Quality: NR - 001 , NR-L - 011, NR-LH - 021, NBR-LH - 121, EPDM-L - 212, FPM - 303, CR - 401, CSM - 501.
ATEX Version Sleeve Quality: NR-E - 031, NR-LE - 061, NBR-LE - 161, EPDM-LE - 261.
Version Standard: 000, 100
Version ATEX: 000, 100
*100 Silicone-Free assembled*
