Rack and Pinion Driven Linear Actuators

Rack-and-pinion driven actuators offer an excellent balance of payload, precision and durability, ideal for applications requiring long strokes linear motion.

Features:

• High load capacity, supporting payloads ranging from 10 to 2,000 kg.
• Available with different guiding systems, such as recirculating ball guides and roller bearings for different types of environments.
• Flexible configurations: rack and pinion actuators can be combined to achieve various Y/Z portal configurations.
• A telescopic solution is available, with synchronization of the elements made by a belt.

Available Versions:

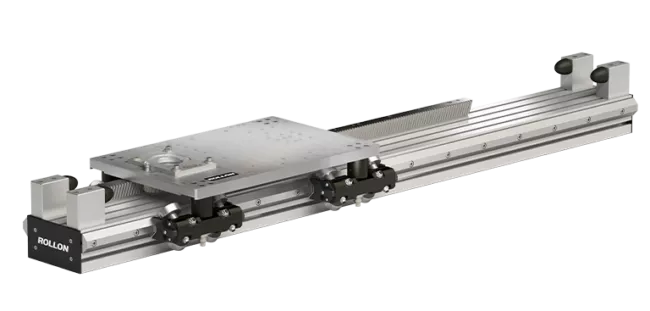

Tecline PAR - Self-supported axis for strokes from 3 to 50 m.

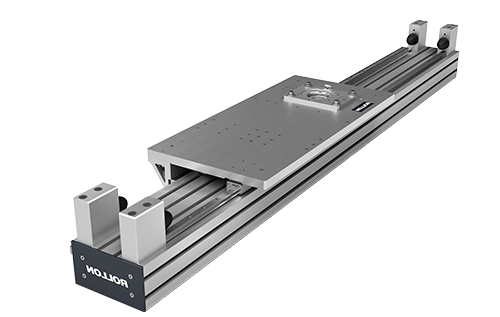

Tecline PAS - Precise self-supported axis for strokes from 3 to 50 m. Payload from 200 to 1000 Kg.
Speedy Rail SAR - Self-supported axis with a polyamide-coated roller guide.

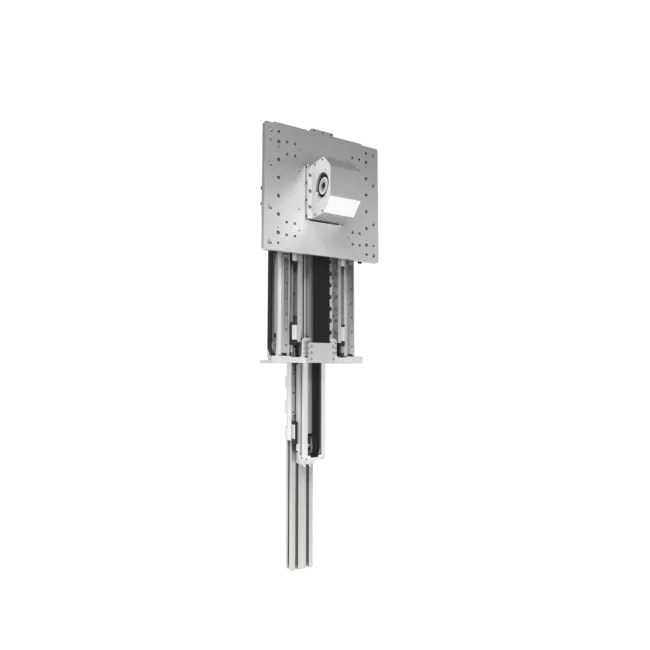

TLS System - Telescopic axes designed for several applications that need to move in limited spaces.
