Tecline PAS

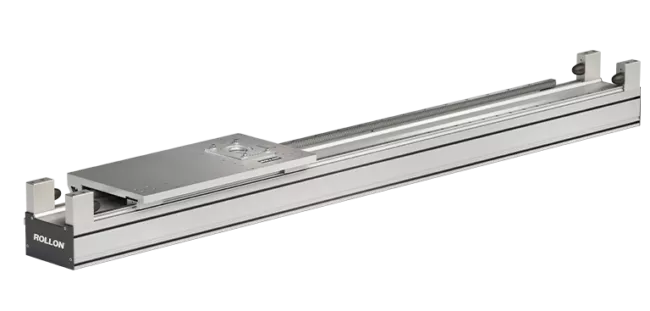

Precise self-supported axis for strokes from 3 to 50 m. Payload from 200 to 1000 Kg. Rigid self-supporting axis. Aluminium profile with very high inertia moment value allowing spacing of pillar up to 6 m. Easy assembly and positioning of pillar supporting profile. 'Free' fixing in aluminium profile groove.

Available Sizes: 118, 140, 170, 220, 230, 280, 360.

Features:

• Movement made by a roller carriage running on two hardened steel prismatic rails and a rack and pinion system with hardened and ground helical teeth.
• Linear unit made to order with customized stroke.
• Technical file with calculation notice supplied on request.
• Suitable for both mounting configurations of two axes in parallel or single-axis.
• In single-axis configuration, to be reserved for medium load cases with little overhang.
• Very good repeatability even over very long lengths.
• Integrated cable carrier chain and duct available. Possibility of several independent carriage.
• Pivot with axial play present on the carriage for compensating parallelism defects and for absorbing the angular defect generated by the bending of the profile.
• Numerous mechanical options available: detector support, automatic lubrication, vertical blocker, anti-fall safety device…
• Connection interfaces available for creating 'Pick & Place' multi-axis.
