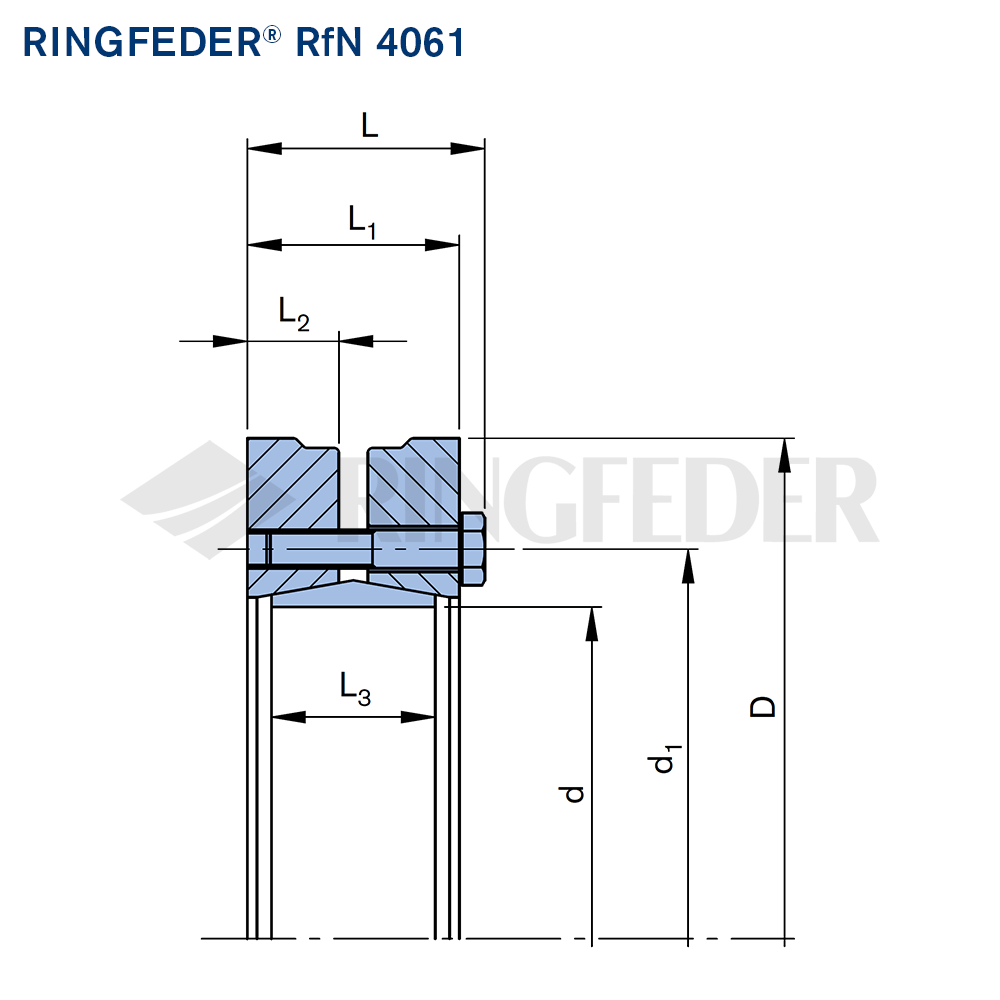

RfN 4061

Forged pressure rings with the highest stability for the best stress distribution, the highest security against breakage and thus ideal material use. Cost-efficient solution with high capacity in the largest possible range of applications. The preload force can be set targeted to the relevant application.

• 3-Part Design
• Inner Diameter d: 14-200 mm
• Outer Diameter D: 37-350 mm
• Overall Length L: 15-96 mm
• Torque T: 30-87,200 Nm
