RfN 4091

LOADING IMAGES

Its wider structure with particularly strong outer rings gives the RINGFEDER^® RfN 4091 series the highest transfer values – even in applications that involve extremely static or dynamic loads. The preload force can be set targeted to the relevant application.

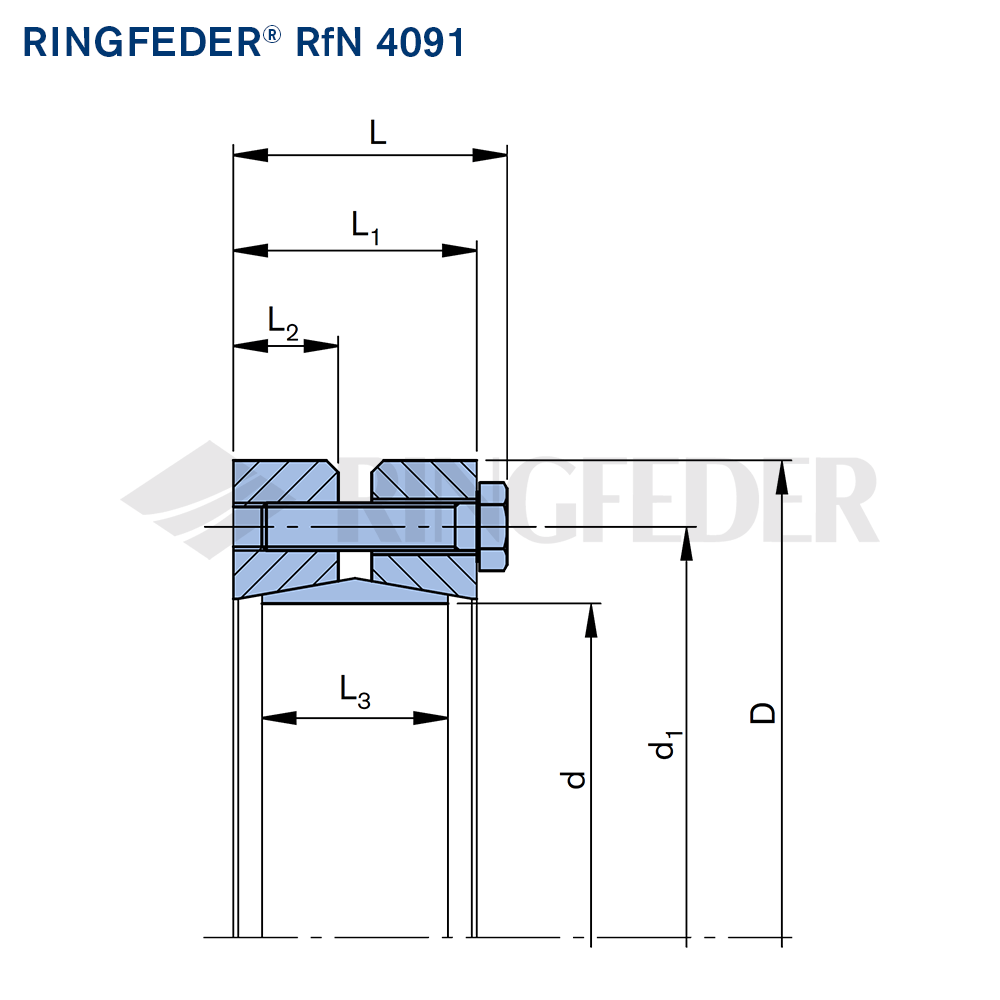

3-Part Design
Inner Diameter d: 50-500 mm
Outer Diameter D: 95-850 mm
Overall Length L: 44.5-291 mm
Torque T: 1,800-2 Mio. Nm

Installation & Operations Manual

RfN 4091 Technical Paper

Shrink Disc Product Catalogue

In stock Out of stock (call us for delivery time)

RINGFEDER® RfN 4091 50x95

£248.39

×
RINGFEDER® RfN 4091 55x105

£298.89

×
RINGFEDER® RfN 4091 62x115

£312.85

×
RINGFEDER® RfN 4091 68x118

£359.10

×
RINGFEDER® RfN 4091 75x145

£392.77

×
RINGFEDER® RfN 4091 80x145

£437.74

×
RINGFEDER® RfN 4091 90x160

£537.48

×
RINGFEDER® RfN 4091 100x170

£593.31

×
RINGFEDER® RfN 4091 110x185

£656.50

×
RINGFEDER® RfN 4091 125x215

£695.71

×
RINGFEDER® RfN 4091 135x212

£605.33

×
RINGFEDER® RfN 4091 140x300

£854.16

×
RINGFEDER® RfN 4091 155x263

£1,056.20

×
RINGFEDER® RfN 4091 165x290

£1,129.08

×
RINGFEDER® RfN 4091 175x300

£1,416.68

×
RINGFEDER® RfN 4091 185x330

£1,555.42

×
RINGFEDER® RfN 4091 190x350

£1,754.47

×
RINGFEDER® RfN 4091 195x350

£1,754.47

×
RINGFEDER® RfN 4091 200x350

£1,778.44

×
RINGFEDER® RfN 4091 220x370

£2,120.49

×
