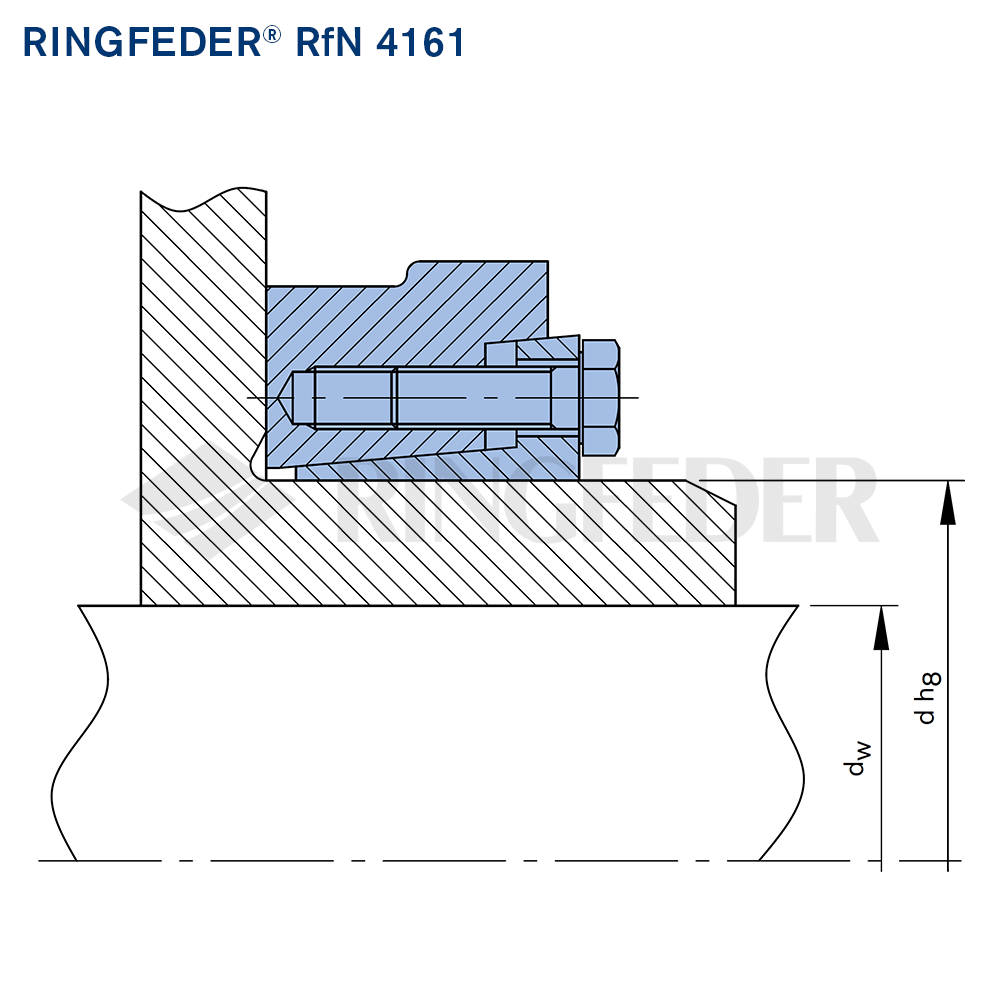

RfN 4161

Standard series – this range is the most popular, being used in most applications. High transmission values are possible and by varying the screw tightening torque the Shrink disc can be adapted to the design specification.

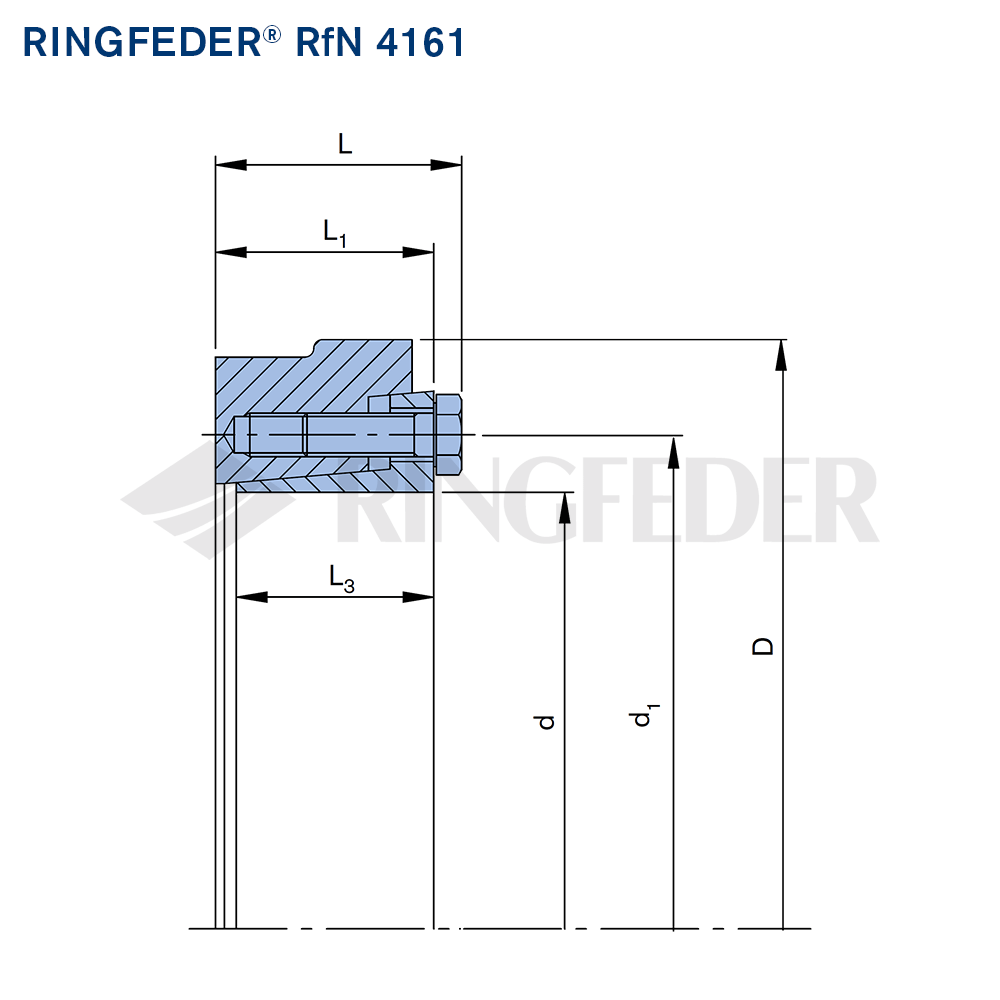

• 2-Part Design
• Inner Diameter d: 18-200 mm
• Outer Diameter D: 44-340 mm
• Overall Length L: 19-95.5 mm
• Torque T: 80-124,000 Nm
